Removing Bypass Flap Control Box

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove control box -1-  .
    1. 1.1  Pull off vacuum hose -2-.
    2. 1.2  Unclip circlip -3-. Replace circlip!
    3. 1.3  Unscrew nuts -4-  and remove control box -1-  .

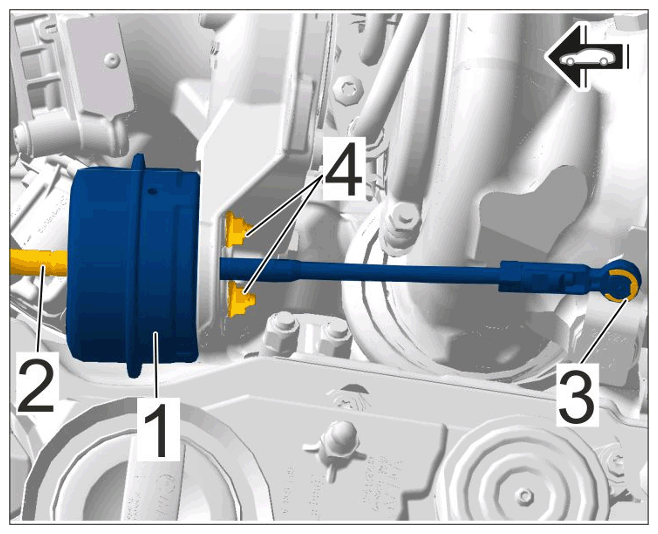

    G15258899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control box for bypass flap
