Removing Pressure Pipe (On Intake-Air Distributor]

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Disconnect pressure hose -1-  from pressure pipe -2-  .

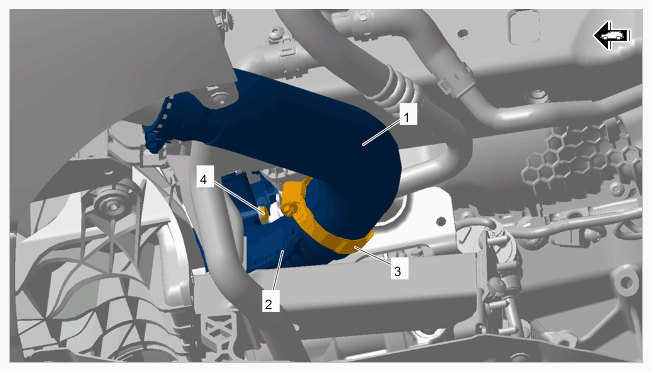

    G15258879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure hose on pressure pipe

    1. 1.1  Loosen screw-type clamp on pressure hose -3-  .
    2. 1.2  Pull pressure hose -1-  off pressure pipe -2-  .
    3. 1.3  Remove screw-type clamp on pressure hose -3-  and set pressure hose -1-  aside.
    4. 1.4 Only for removing left pressure pipe:  Unscrew screw on pressure pipe holder -4-  .
  2. Remove pressure pipe -1-  .

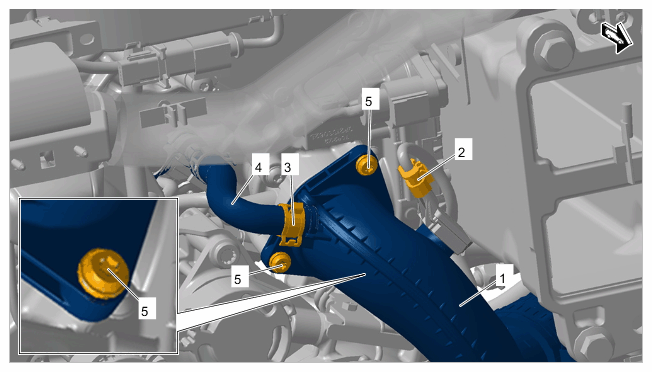

    G15258880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure pipe on intake-air distributor

    1. 2.1  Release and disconnect electric plug connection for pressure sensor -2-  .
    2. 2.2 Only for removing left pressure pipe:

      Loosen spring band clamp -3-  using > VAS 6890 - spring band clamps pliers  .

    3. 2.3  Pull off hose -4-  .
    4. 2.4  Unscrew and remove screws -5-  .
    5. 2.5  Remove pressure pipe -1-  .
