Installation Position
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

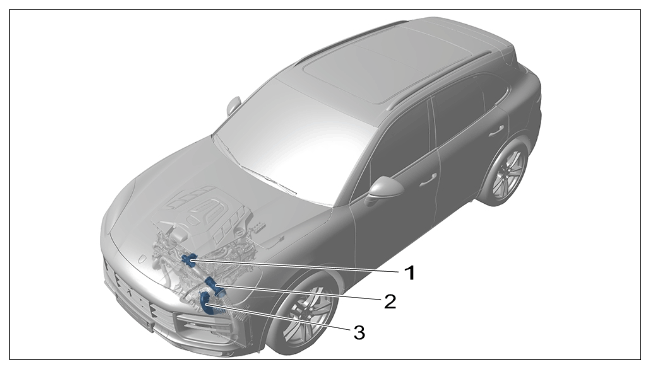

Installation position
| 1 |
Pressure pipe (at the turbocharger) |
| 2 |
Pressure pipe (on charge-air cooler) |
| 3 |
Pressure pipe (on intake-air distributor) |
