Removing Intake Manifold

WARNING: This page is about a different variant/trim than selected.
  1. Have suitable stoppers ready for closing off the line connections.
  2. Disconnect line connections.
    G15258861Courtesy of PORSCHE CARS NORTH AMERICA, INC.

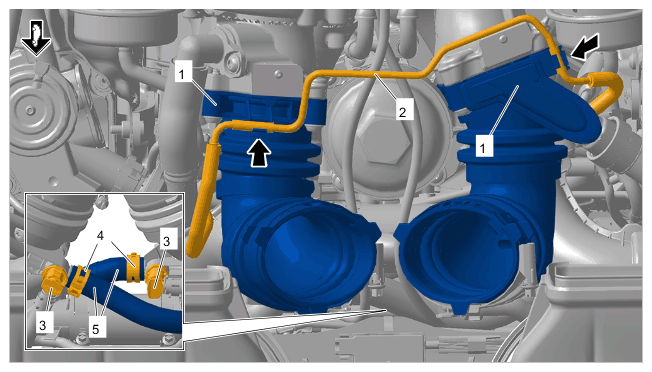

    Line connections for intake pipes

    1. 2.1  Unclip vacuum line -2-  from intake manifold -1- (-Arrows-)  and set it aside.
    2. 2.2  Release and disconnect line connections -3-  .
    3. 2.3  Loosen spring band clamps -4-  using > VAS 6891 - spring band clamp pliers  and disconnect hoses -5-  .
    4. 2.4  Close off connection openings using suitable stoppers.
  3. Remove intake pipes -1-  .
    G15258862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

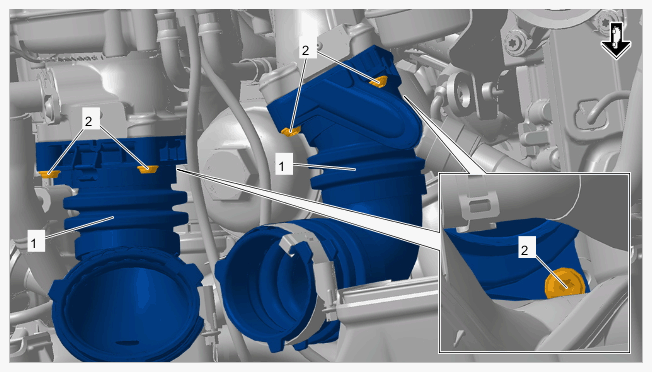

    Intake pipes

    1. 3.1  Unscrew screws for intake pipes -2-  .
    2. 3.2  Remove intake pipes -1-  .
