Installing Intake-Air Distributor
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

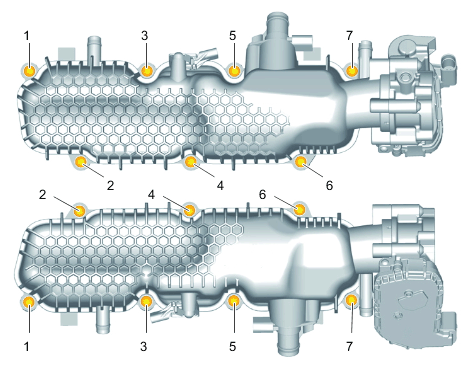

Tightening sequence for intake-air distributor - V8 Turbo
1-7 Tightening sequence for intake-air distributor - 1.1 Check seal and replace it if necessary.
- 1.2 Tighten screws for intake-air distributor in the sequence -1 to 7- to > Tightening torque 9 Nm (6.5 ftlb.) .
