Removing Air Box For Air Cleaner

WARNING: This page is about a different variant/trim than selected.

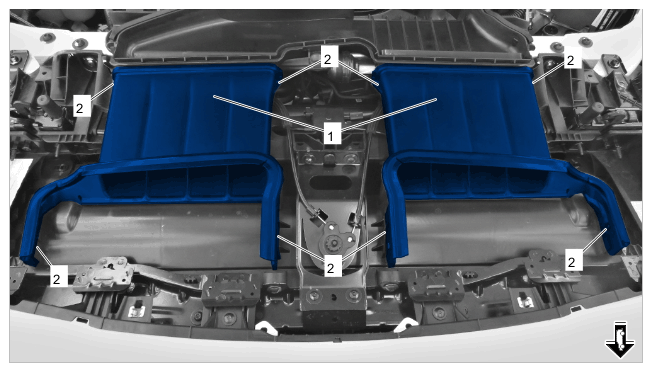

  1. Pull air box for air cleaner -1-  up out of the guides -2-  and remove it.
    G15258917Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air box for air cleaner
