Removing Pulse Sender
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.
- Remove pulse sender -1-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

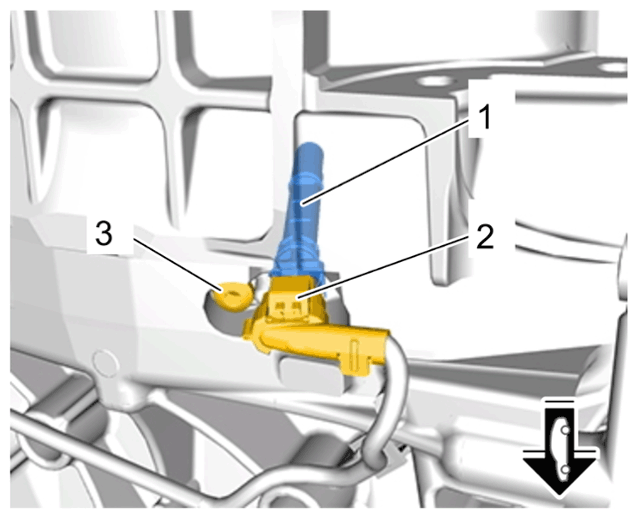

Pulse sender
- 1.1
Release and disconnect electric plug connection -2-
.
- 1.2
Unscrew screw -3-
.
- 1.3
Pull off pulse sender -1-
.
