Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Only for hybrid models for ignition coils, page 5-8  : Secure the coolant reservoir for the low-temperature system.
    1. 1.1  Install the reservoir holder -2-  .
    1. 1.1.1  Position holder -2-  and fit and tighten screws -1-  .

      > Tightening torque 8 Nm (6 ftlb.)

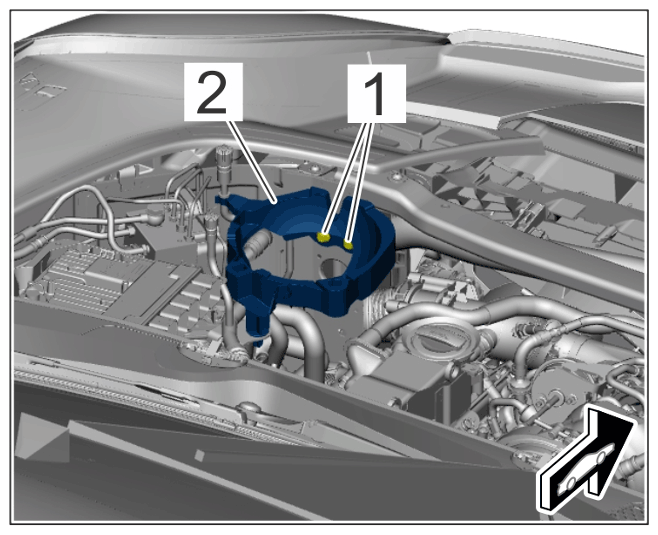

      G15259256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Holder for reservoir

    2. 1.1.2  Clip reservoir -1-  into the holder.

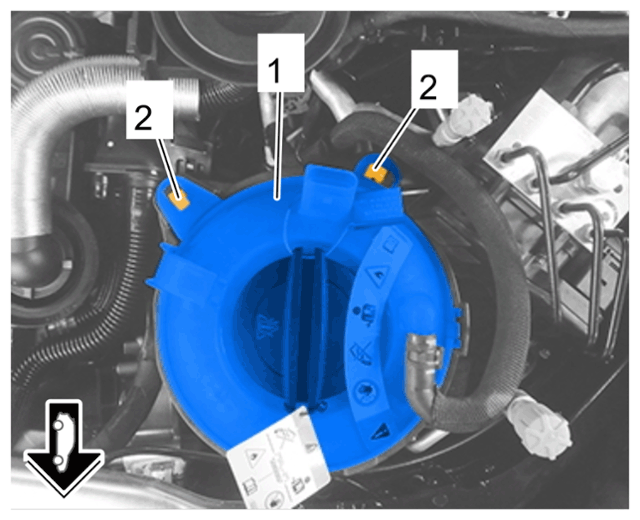

      G15259257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Reservoir for low-temperature system

  2. Only after removing ignition coils for cylinders 1 to 4:  Install torque support.

    > Removing and installing torque support

  3. Install air cleaner housing.

    > Removing and installing air cleaner housing
