Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Cover for fuel line at front right wheel housing	Item 2	Tightening torque	4.5 Nm (3.25 ftlb.)

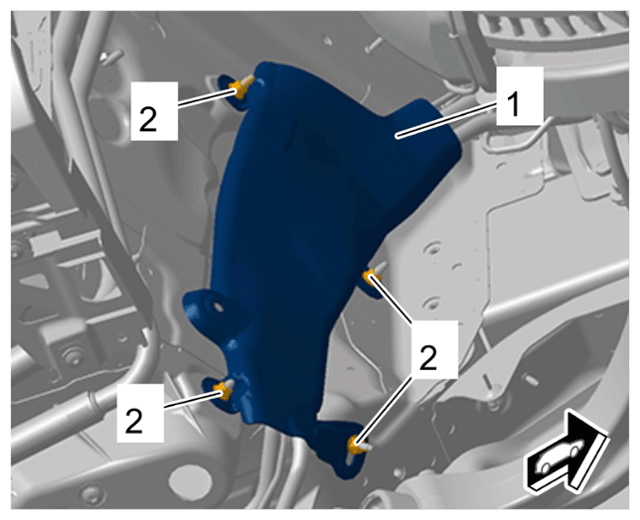

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover on fuel line, front right
Heat shield on underbody, right	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)

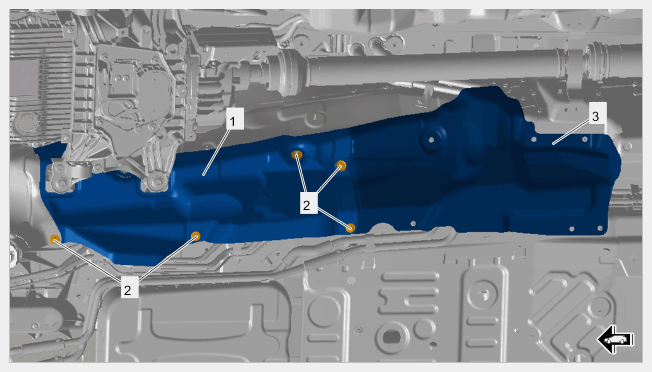

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shields on right underbody
Screw for low-pressure fuel line	M6 x 16	Tightening torque	9 Nm (6.5 ftlb.)
Screw for low-pressure fuel line	M6 x 16	Tightening torque	9 Nm (6.5 ftlb.)
Union nut for fuel low-pressure line	Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting. Observe specified tightening sequence!	Initial tightening	8 Nm (6 ftlb.)
Union nut for fuel low-pressure line		Final tightening	+ 50°
Screw securing coolant line to engine	M6	Tightening torque	9 Nm (6.5 ftlb.)
