Preliminary Work - Section From High-Pressure Pump To High-Pressure Pump
WARNING: This page is about a different variant/trim than selected.
- Relieve fuel pressure in the system.

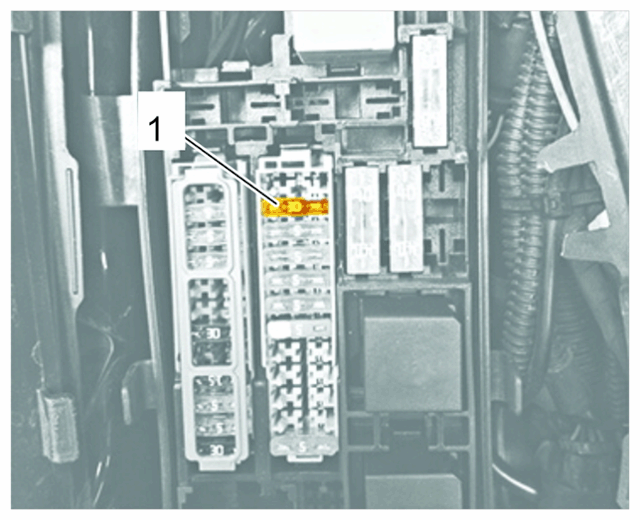

Fuel pump fuse
- 1.1 Remove cover from fuse carrier F in the engine compartment at the front right.
- 1.2 Pull out the fuse -1- for the fuel pump.
- 1.3 Start the engine, wait until it cuts out and then re-insert the fuse -1-
- Remove primary catalytic converters.
> Removing and installing primary catalytic converter (V8 biturbo)
- Remove heat shield and sound absorber or high-pressure pumps.
> Removing and installing high-pressure pump (V8 biturbo)
