Removing Fuel Level Sender

WARNING: This page is about a different variant/trim than selected.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
1. → Ventilate the work area well.
2. → Never ingest or inhale.
3. → Read specific information on the Hazard Sheet.
4. → Wear personal protective gear.
5. → Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
1. → Avoid contact with hot parts or sources of ignition.
2. → Use suction to remove ignitable vapors.
3. → Attach warning sign in a clearly visible position.
4. → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
5. → Secure collection containers/vessels to prevent them from tipping over.

Information

When disconnecting the auxiliary heating line, always check that there is no check valve installed in this area. If there is fuel pressure in the fuel tank, this can also escape unhindered when the line is disconnected.

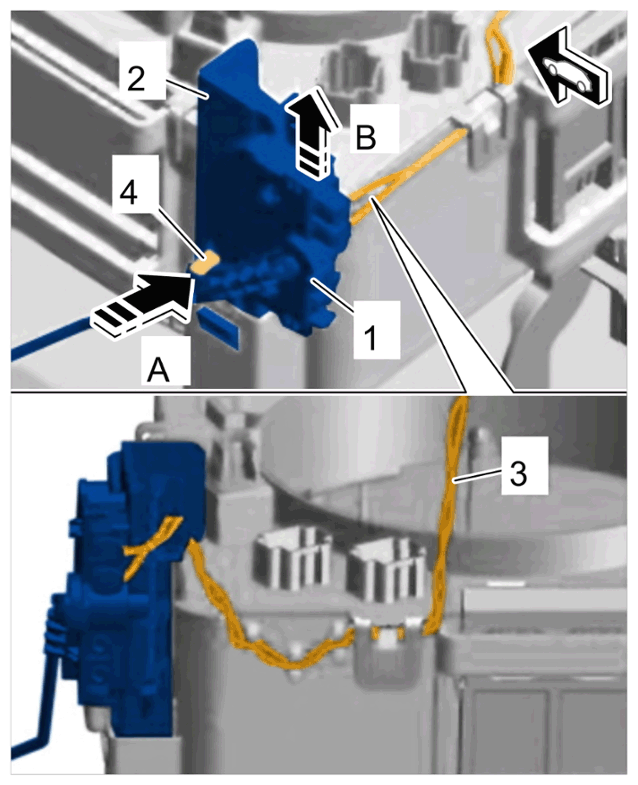

Remove fuel level sender -1- and holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel level sender
1. 1.1 Disengage electric lines for fuel level sender -3- at the surge pot.
2. 1.2 Release catch -4- in -direction of arrow A- and pull fuel level sender -1- together with holder -2- off the surge pot -arrow B- .
3. 1.3 Carefully guide the fuel level sender -1- out of the opening in the fuel tank, making sure not to bend the float arm.
