Installing Fuel Level Sender

WARNING: This page is about a different variant/trim than selected.
  1. Install fuel level sender -1-  and holder -2-  .

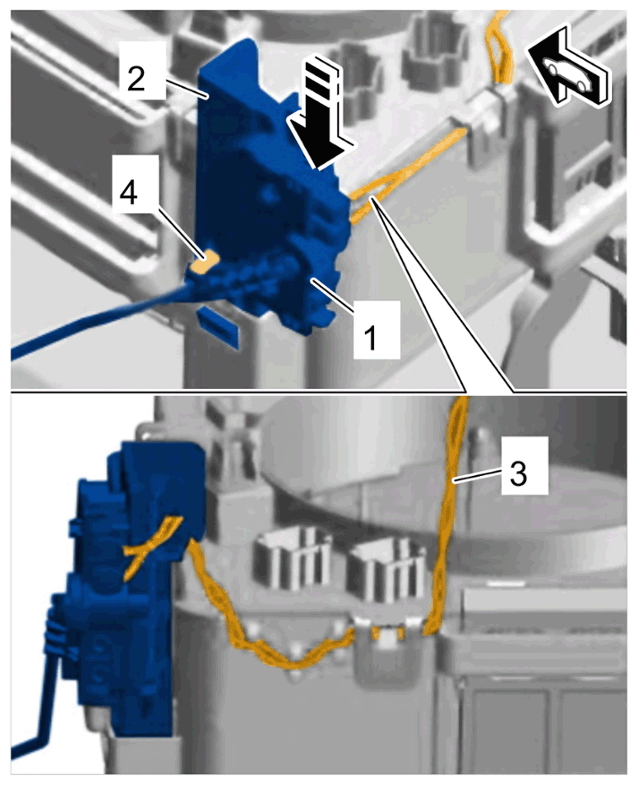

    G15258796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel level sender

    1. 1.1  Carefully guide the fuel level sender -1-  into the fuel tank through the opening, making sure not to bend the float arm.
    2. 1.2  Insert fuel level sender -1-  together with holder -2-  into the mountings on the surge pot and press it down in -direction of arrow-  until it engages securely.
    3. 1.3  Engage electric lines for fuel level sender -3-  at the surge pot.
