Removing Centre Tailpipe

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Remove twin tailpipe.

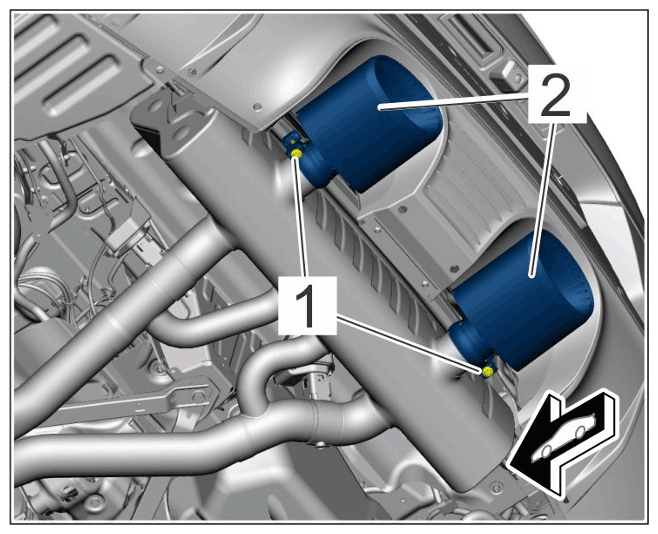

    G15259109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tailpipe, centre

    1. 1.1  Mark the installation position of the tailpipes -2-  .
    2. 1.2  Loosen screws -1-  on clamps.
    3. 1.3  Pull outer tailpipe off the rear silencer.
