Installing Heat Shields For Tunnel At The Right
WARNING: This page is about a different variant/trim than selected.
- Install heat shields for tunnel at the right -1, 2 and 3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

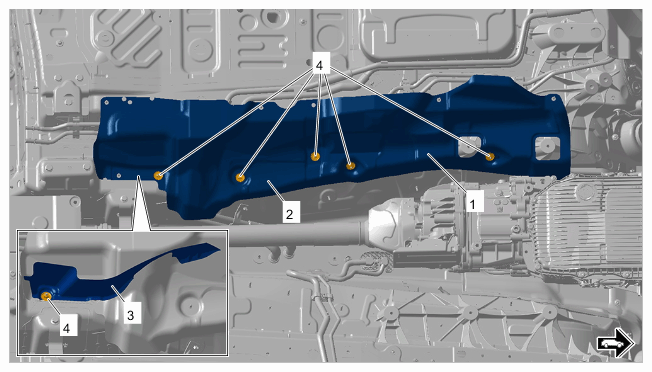

Heat shields for tunnel at the right
- 1.1
Position heat shields -1, 2 and 3-
.
- 1.2
Tighten speed nuts -4-
.
> Tightening torque 2.5 Nm (1.75 ftlb.)
