Removing Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Remove exhaust manifold.

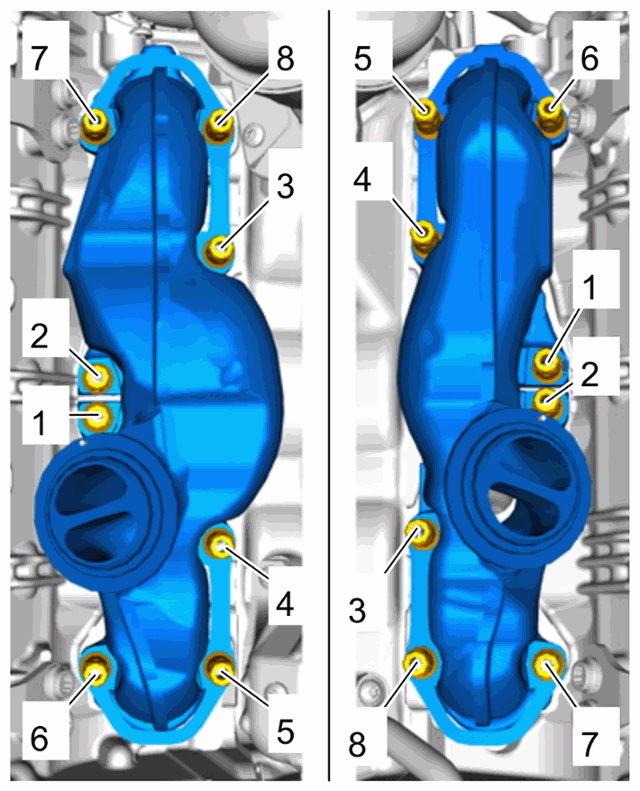

Fig 1: Exhaust Manifold Nuts Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold threaded joint
1. 1.1 Remove nuts in the sequence -8 to 1- .
2. 1.2 Remove retaining brackets.
3. 1.3 Remove exhaust manifold.

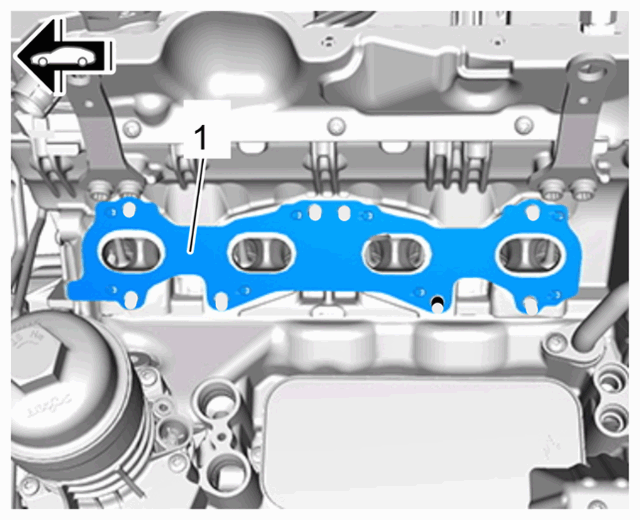

Remove metal seal -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Metal seal between exhaust manifold and cylinder head
