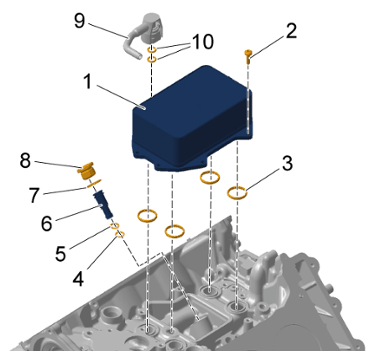

Oil/water heat exchanger
| 1 | Oil/water heat exchanger |
| 2 | Screw. M6 x 18 > Tightening torque 9 Nm (6.5 ftlb.) |
| 3 | Seal/replace |
| 4 | O-ring/replace |
| 5 | O-ring/replace |
| 6 | Spray nozzle valve |
| 7 | Seal/replace |
| 8 | Screw plug, M22 x 1.5 > Initial tightening 40 Nm (30 ftlb.) > Final Tightening + 45° |
| 9 | Positive crankcase ventilation hose |
| 10 | O-rings/replace |
