Cylinder Head Cover

WARNING: This page is about a different variant/trim than selected.

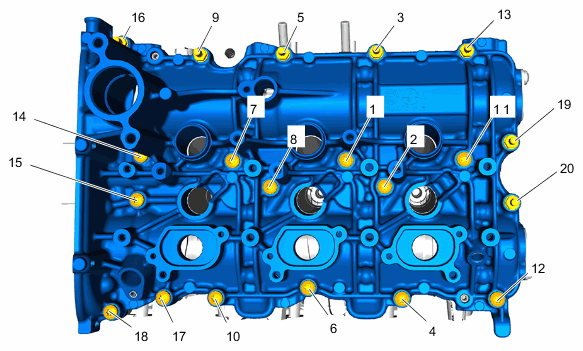

Fig 1: Cylinder Head Cover On Right Cylinder Bank Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cylinder head cover on right cylinder bank

1 to 20

Screws for cylinder head cover on right cylinder bank/replace > Initial tightening 8 Nm (6 ftlb.) > Torque angle + 90°

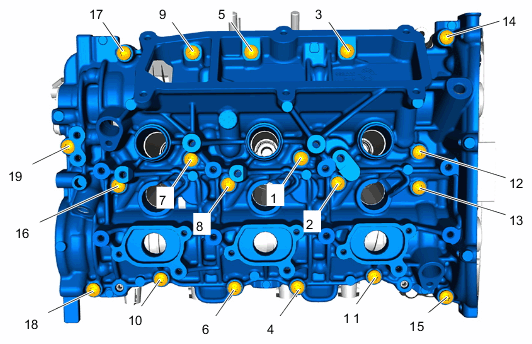

Fig 2: Cylinder Head Cover On Left Cylinder Bank Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cylinder head cover on left cylinder bank

1 to 19

Screws for cylinder head cover on left cylinder bank/replace > Initial tightening 8 Nm (6 ftlb.) > Torque angle + 90°
