Cylinder Head Cover Holder

WARNING: This page is about a different variant/trim than selected.

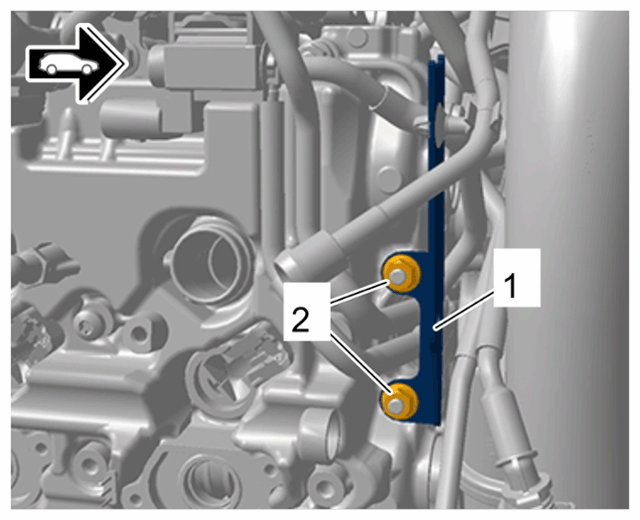

Fig 1: Line Bracket On Right Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket on right cylinder bank

1	Line bracket on right cylinder bank
2	> Tightening torque 9 Nm (6.5 ftlb.)

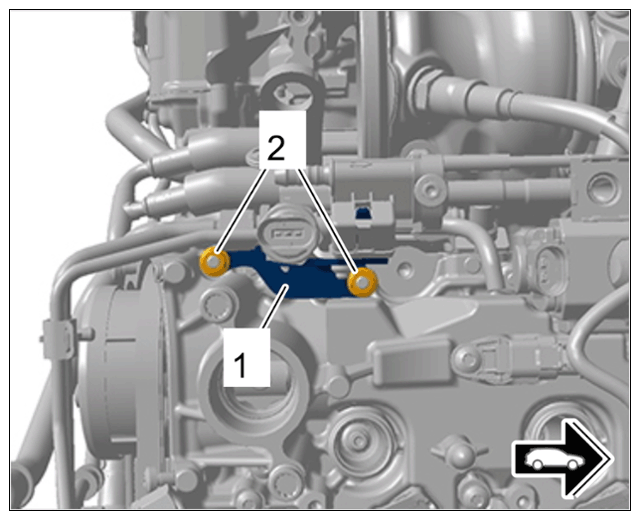

Fig 2: Holder On Right Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder on right cylinder bank

1	Holder on right cylinder bank
2	> Tightening torque 9 Nm (6.5 ftlb.)
