Chain Tensioner, Guide And Tensioning Rails

WARNING: This page is about a different variant/trim than selected.

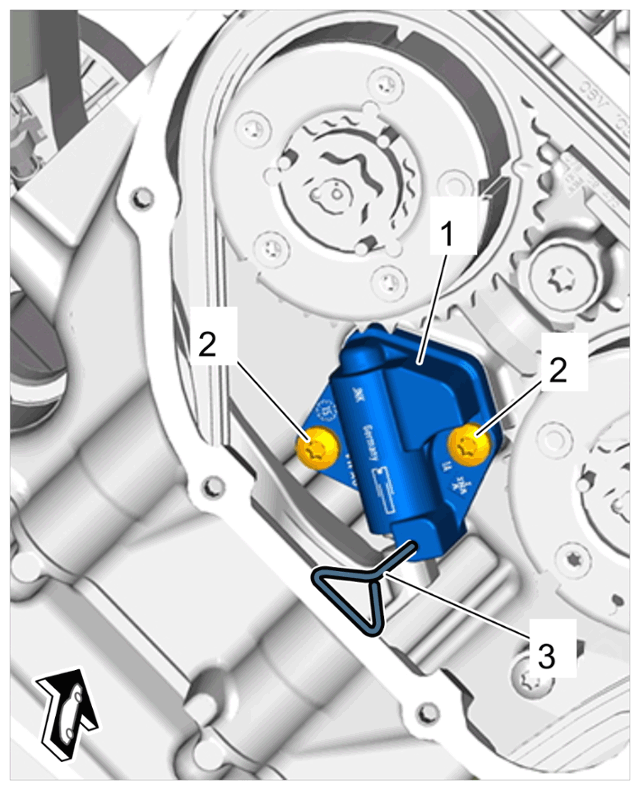

Fig 1: Timing Chain Tensioner Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Timing chain tensioner

1	Timing chain tensioner
2	Screws on timing chain tensioner > Tightening torque 9 Nm (6.5 ftlb.)
3	Locking tool for timing chain tensioner

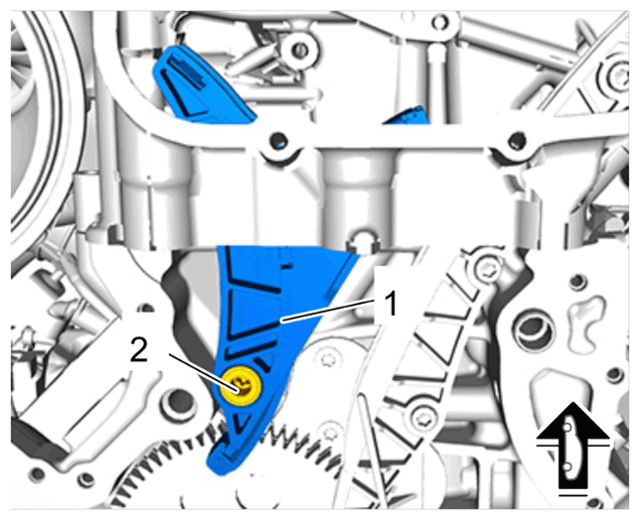

Fig 2: Tensioning Rail For Left Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning rail for left cylinder bank

1	Tensioning rail for left cylinder bank
2	Bearing pins for tensioning rail for left cylinder bank > Tightening torque 23 Nm (17 ftlb.)

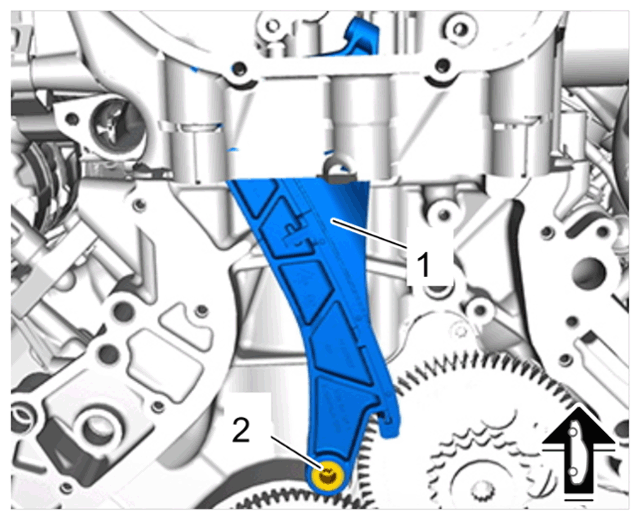

Fig 3: Guide Rail For Left Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail for left cylinder bank

1	Guide rail for left cylinder bank
2	Screws on guide rail for left cylinder bank > Tightening torque 9 Nm (6.5 ftlb.)

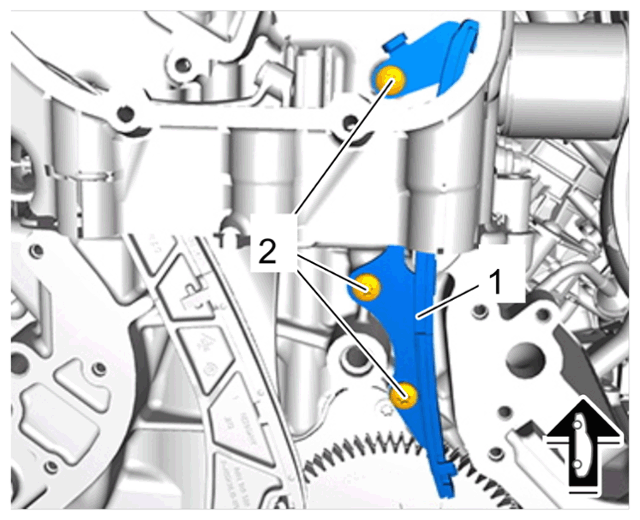

Fig 4: Guide Rail For Right Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail for right cylinder bank

1	Guide rail for right cylinder bank
2	Bearing Dins for guide rail for right cylinder bank/replace > Initial tightening 5 Nm (3.5 ftlb.) > Torque angle + 45°

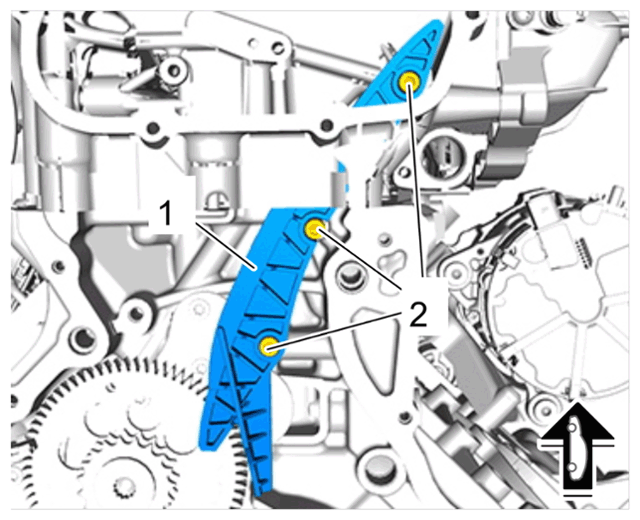

Fig 5: Tensioning Rail For Right Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning rail for right cylinder bank

1	Tensioning rail for right cylinder bank
2	Bearing Dins for tensioning rail for right cylinder bank > Tightening torque 23 Nm (17 ftlb.)
