Chain Box

WARNING: This page is about a different variant/trim than selected.

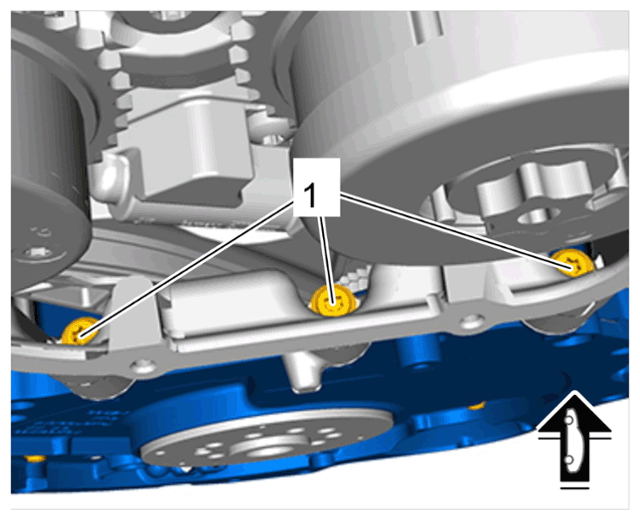

Fig 1: Upper Screws On Chain Housing Cover In Chain Box Component Location With Torque Specification
G15210335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper screws on chain housing cover in chain box

1  Screws/replace  > Initial Tightening 3 Nm (2 ftlb.)  > Tightening torque 8 Nm (6 ftlb.)  > Final Tightening + 90°
