Drive Plate
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

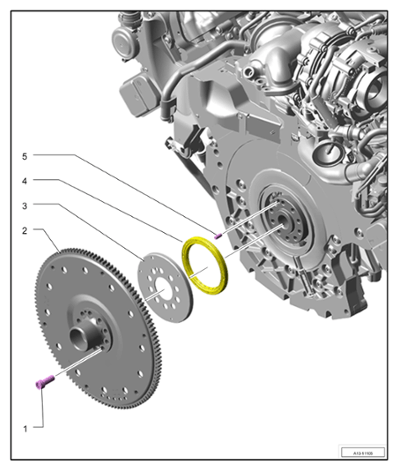

Flywheel
| 1 |
Screw (M10 x 1 x 291 > pre-Tightening 60 Nm (44.3 ftlb.)
> final-Tightening + 90°
/always replace after loosening! |
| 2 |
Drive plate |
| 3 |
Hall-sender rotor |
| 4 |
Sealing ring for crankshaft |
| 5 |
Centring pin |
