Service Information 13 - Engine - Crank Drive, Pistons: Crankshaft

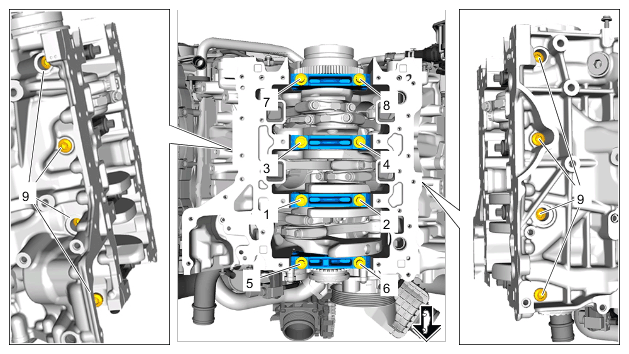

Fig 1: Crankshaft Bearing Covers Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for crankshaft bearing covers

1 to 8	Screws for crankshaft bearing covers/replace  > Initial Tightening 30 Nm (22 ftlb.)  > Torque angle + 90°
9	Screws for crankshaft bearing covers, side/replace  > Tightening torque 20 Nm (15 ftlb.)  > Torque angle + 90°
