Removing Pilot Line Connector
WARNING: This page is about a different variant/trim than selected.
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
- → Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
- → Required qualification: High voltage technician or high voltage expert.
- → Observe national requirements and legislation for this work.
- → Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
- → Observe general warning notes for working on the high-voltage system.
- → > WM, 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Unclip pilot line connector.

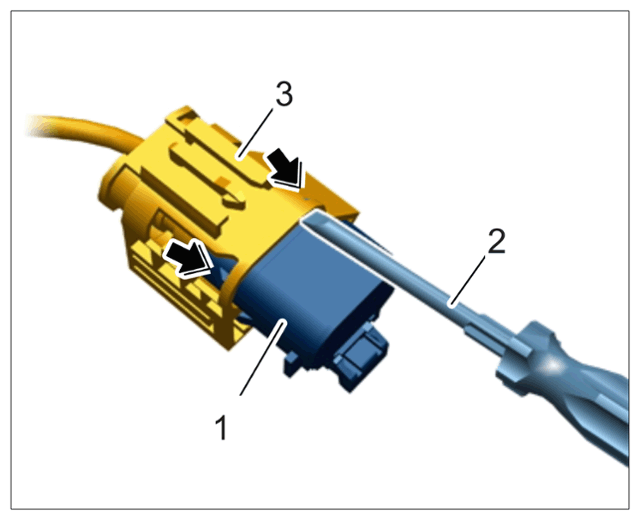

- Release cover -1-
using a suitable tool -2-
and remove it from the housing -3-(-arrows-
).
Cover on pilot line connector
- Loosen fabric adhesive tape on electric line at the end of the connector and cut it off.

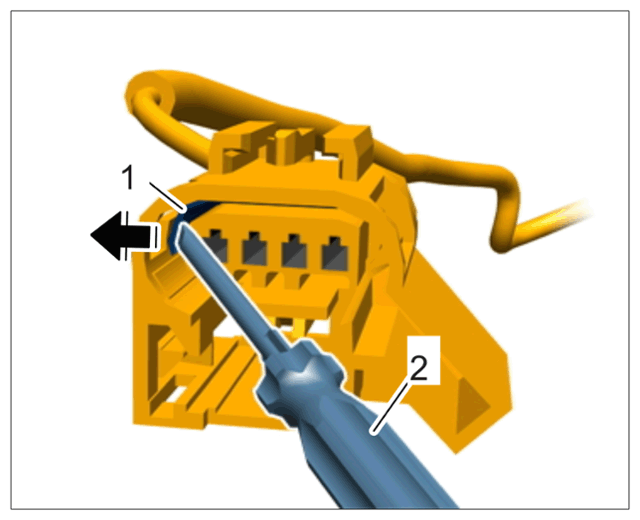

- Release secondary lock -1-
using a suitable tool -2- (-arrow-
).
Secondary lock on pilot line connector
Information

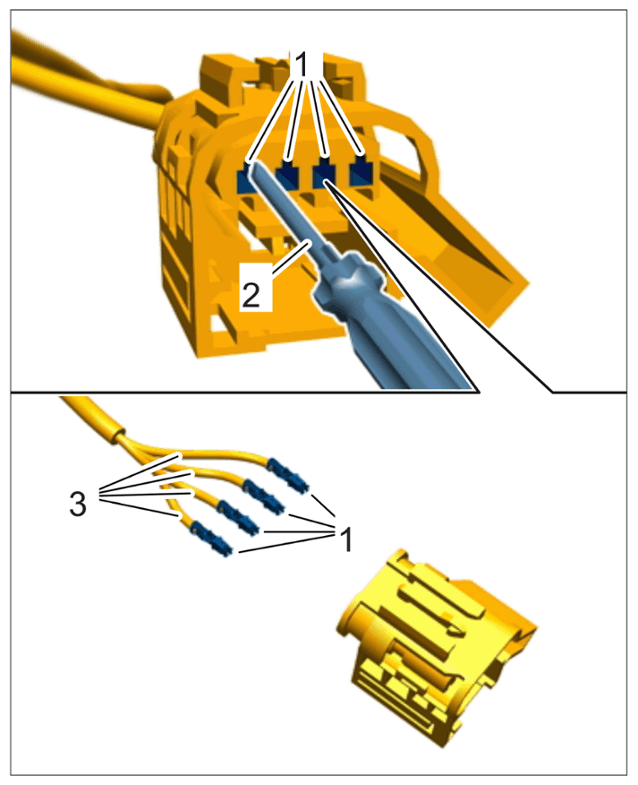

CAUTION: Risk of damage to locking lugs. - Release pins -1-
using press-out tool -2-
from > VAS 1978/35-20 - Release Tool Set
and pull them out carefully at the electric line -3-
.
Pilot line connector pins

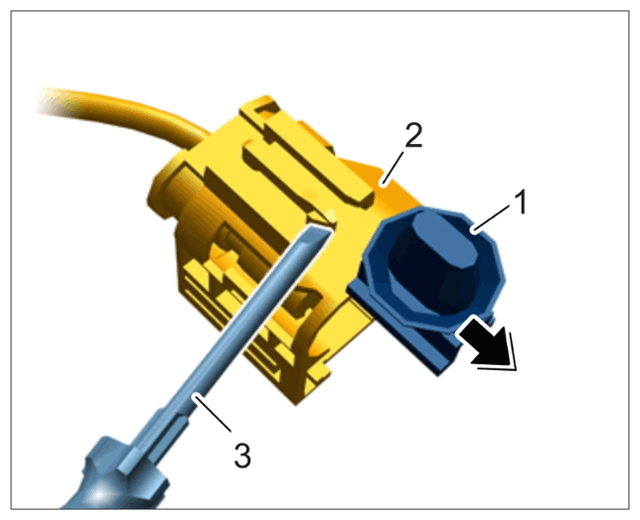

- Release clip -1-
from the old pilot line connector -2-
using a suitable tool -3-
and pull it off -arrow-
.
Clip on pilot line connector
