Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws securing side heat shield to electric motor | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Heat shield |
|||||

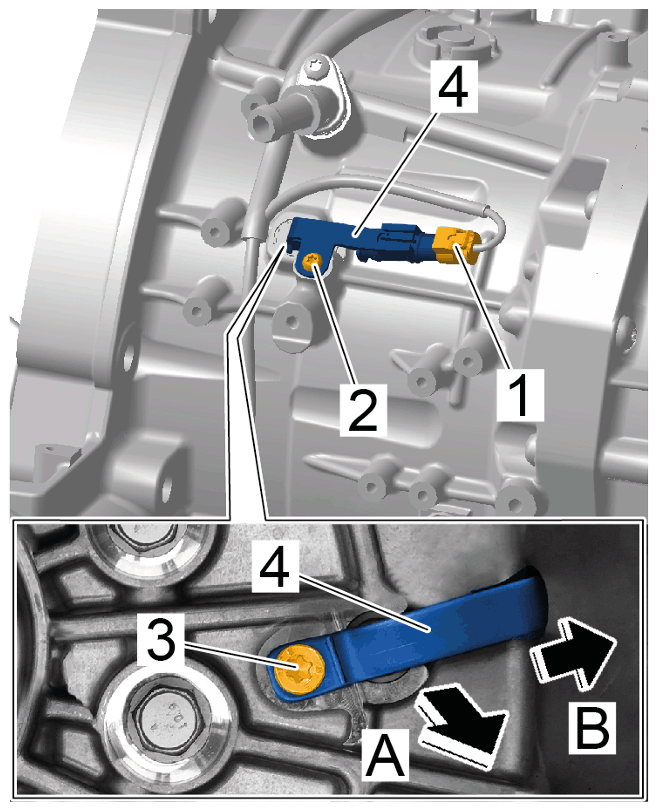

| Fastening screws securing temperature sensor to electric motor | Item 2 and 3 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
|
Temperature sensor |
