Subsequent Work
WARNING: This page is about a different variant/trim than selected.
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
- → Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
- → Required qualification: High voltage technician or high voltage expert.
- → Observe national requirements and legislation for this work.
- → Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
- → Observe general warning notes for working on the high-voltage system.
- → > WM, 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Installing left flange shaft.

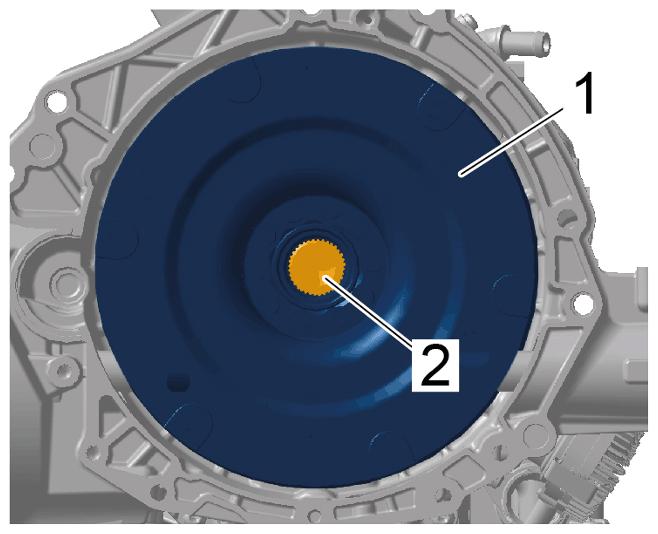

- Fit torsional vibration damper -1-
on shaft of electric motor -2-
.
Observe markings!
Torsional vibration damper
- Mounting transmission.
> 373527 REMOVING AND MOUNTING AUTOMATIC TRANSMISSION (HYBRID)
