Preliminary Work

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
1. → Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
2. → Required qualification: High voltage technician or high voltage expert.
3. → Observe national requirements and legislation for this work.
4. → Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
5. → Observe general warning notes for working on the high-voltage system.
6. → > WM, 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Information

Observe the following specifications for all the work described:

Country-specific, national, legal and official regulations
Local restrictions and export restrictions,
Manufacturer specifications from component and vehicle manufacturers,
Component-specific specifications.

These strict specifications apply in particular to:

Storage, installation and removal, transport and disposal of vehicles, assemblies, operating materials and auxiliary materials,
Handling defective and potentially hazardous vehicles as well as assemblies,
Handling battery electric vehicles and high-voltage components.

Consider relevant and qualified sources of information such as local authorities, competent importer, associations and specialised websites for this purpose. Only deliver items to be disposed of to authorised reception points.

These regulations to be complied with have to be checked, observed and, if necessary, documented by the person responsible for the vehicle for all life phases and work.

Removing transmission.
> 373527 REMOVING AND MOUNTING AUTOMATIC TRANSMISSION (HYBRID)
Removing left flange shaft.
> 391555 REPLACING FLANGED-SHAFT SEALING RING
Removing torsional vibration damper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

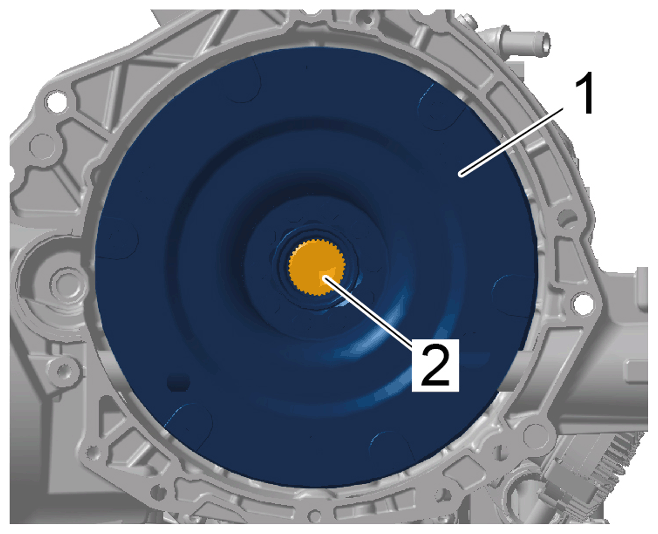

Torsional vibration damper
1. 3.1 Mark installation position of torsional vibration damper -1- with respect to shaft of elect. machine -2- .
2. 3.2 Remove torsional vibration damper -1- from shaft of elect. machine -2- .
