Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

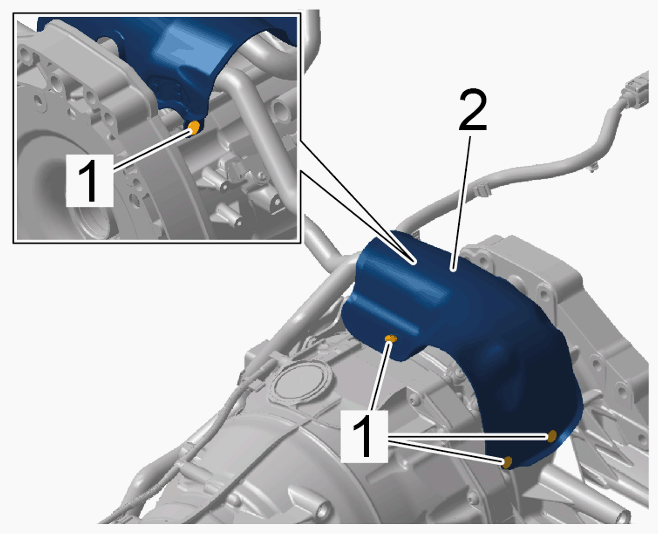

| Fastening screws securing heat shield to electric motor | Item 1 | Tightening torque | 12 Nm (9 ftlb.) | ||
|
Heat shield |
|||||

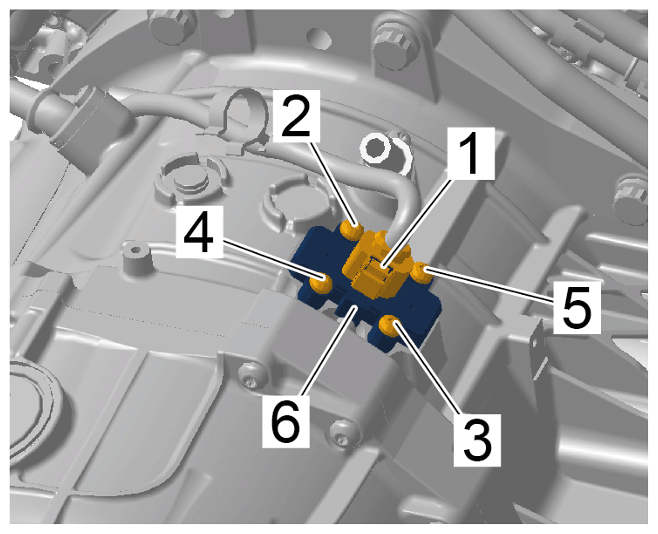

| Fastening screws securing rotor position sensor to electric motor | Item 2 to 5 | Tightening torque | 7 Nm (5 ftlb.) | ||
|
Rotor position sensor |
