Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Fastening screws for transmission housing cover at high-voltage connection for electric motor	Item 3	Tightening torque	9 Nm (6.5 ftlb.)

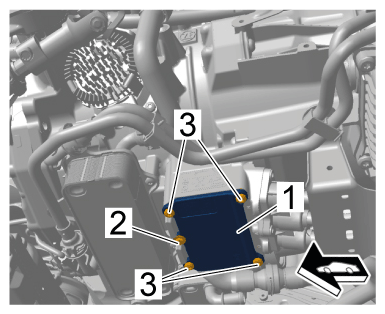

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for high-voltage connection for electric motor
Fastening screw for transmission housing cover at high-voltage connection for electric motor	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for high-voltage connection for electric motor
Fastening screws for high-voltage line from power electronics to electric motor at electric motor	Item 1	Tightening torque	21 Nm (15 ftlb.)

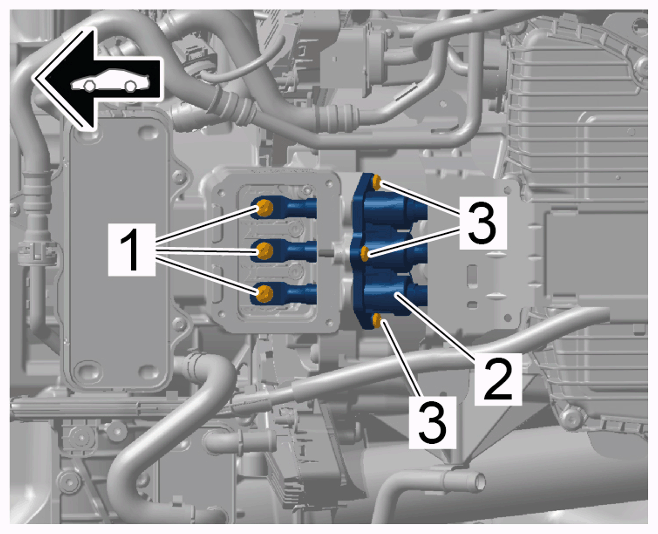

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric motor
Fastening screws for high-voltage line from power electronics to electric motor holder at electric motor	Item 3	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric motor
Fastening screws securing torque converter to electric motor	Item 1	Tightening torque	62 Nm (46 ftlb.)

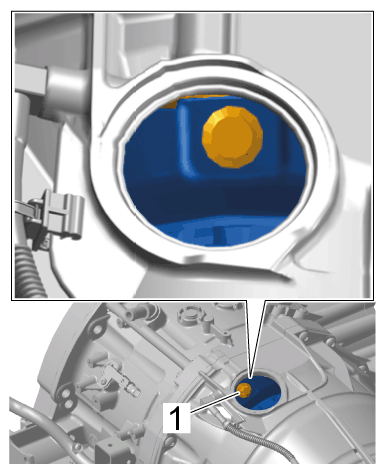

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Torque converter screws
Fastening screws securing electric motor to automatic transmission	Item 1, 5, 3	Initial tightening	12 Nm (9 ftlb.)

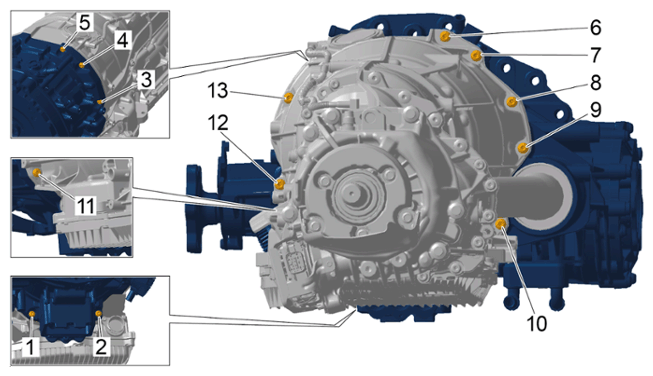

Courtesy of PORSCHE CARS NORTH AMERICA, INC. First initial tightening for screws for electric motor
Fastening screws securing electric motor to automatic transmission	Item 1, 2, 3, 4, 5	Final tightening	24 Nm (18 ftlb.)
Second initial tightening for screws for electric motor
Fastening screws securing electric motor to automatic transmission	Item 6, 7, 8, 9, 10, 11, 12, 13	Final tightening	24 Nm (18 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Final tightening for screws for electric motor
Fastening screws securing heat shield to electric motor	Item 1	Tightening torque	12 Nm (9 ftlb.)

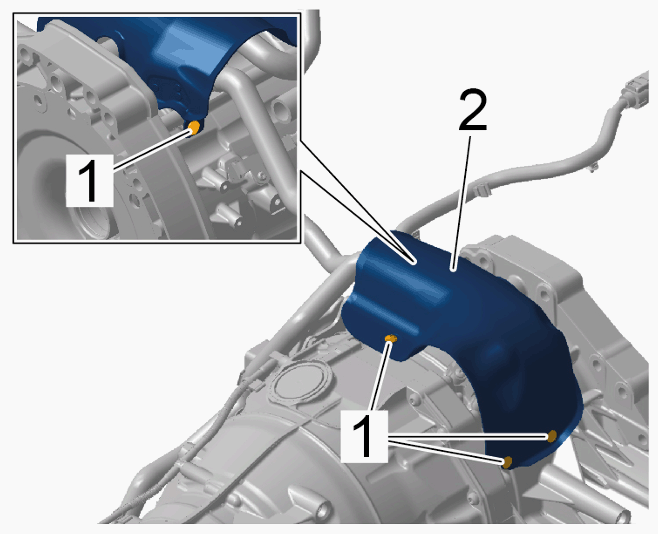

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
