Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install right luggage rail.

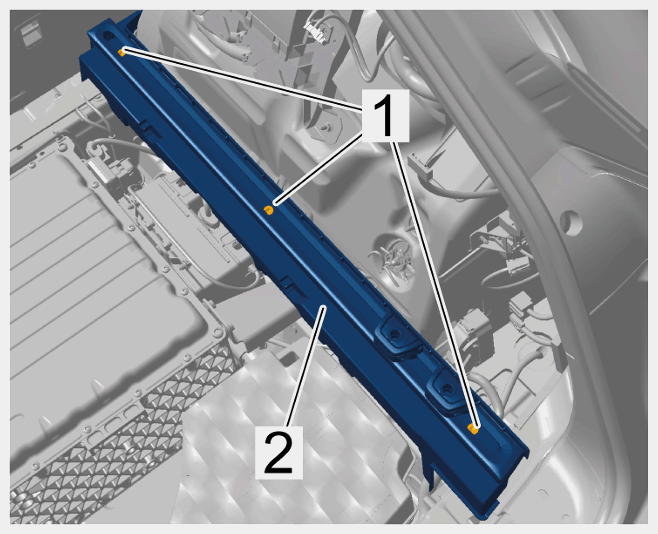

1.1 Fit right luggage rail -2- in luggage compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right luggage rail

1.2 Screw in fastening screws -1- and tighten to > Tightening torque 12 Nm (9 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

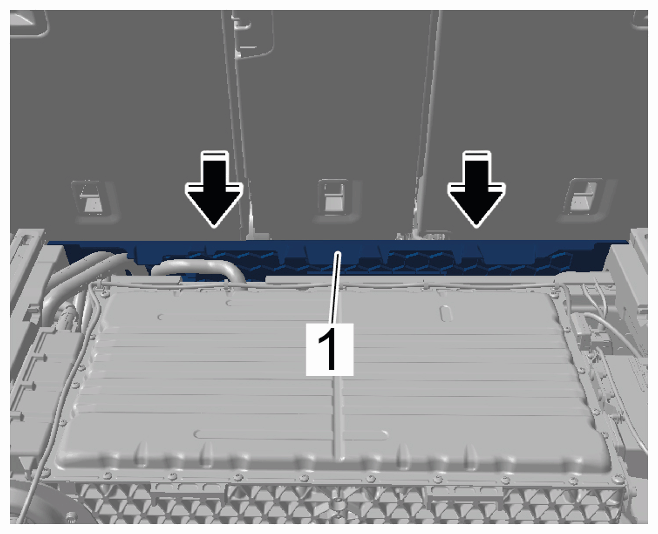

1.3 Install floor cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Floor cover

Install side trim panel for rear luggage compartment at the right.
> 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT
Install loadspace floor.
Secure battery ground strap.
> 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
