Preliminary Work
WARNING: This page is about a different variant/trim than selected.
Information
Observe the following specifications for all the work described:
- Country-specific, national, legal and official regulations,
- Local restrictions and export restrictions,
- Manufacturer specifications from component and vehicle manufacturers,
- Component-specific specifications.
These strict specifications apply in particular to:
- Storage, installation and removal, transport and disposal of vehicles, assemblies, operating materials and auxiliary materials,
- Handling defective and potentially hazardous vehicles as well as assemblies,
- Handling battery electric vehicles and high-voltage components.
Consider relevant and qualified sources of information such as local authorities, competent importer, associations and specialised websites for this purpose. Only deliver items to be disposed of to authorised reception points.
These regulations to be complied with have to be checked, observed and, if necessary, documented by the person responsible for the vehicle for all life phases and work.
- Observe work instruction for 48 V vehicle electrical system.
> 2X00IN WORK INSTRUCTION FOR 48 V VEHICLE ELECTRICAL SYSTEM
- 1.1
Disconnect 48 V vehicle electrical system.
> 2X00IN WORK INSTRUCTION FOR 48 V VEHICLE ELECTRICAL SYSTEM
- 1.1
Disconnect 48 V vehicle electrical system.
- Loosen ground strap for battery.

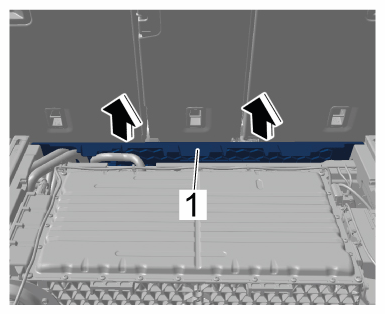

- Remove loadspace floor.
- Remove rear luggage compartment side trim panel at the right.
> 700319 REMOVING AND INSTALLING REAR LUGGAGE COMPARTMENT SIDE TRIM PANEL
- Remove right luggage rail.
