Installing 48-Volt Additional Battery

1. Installation is performed in reverse order. Pay particular attention to the following:

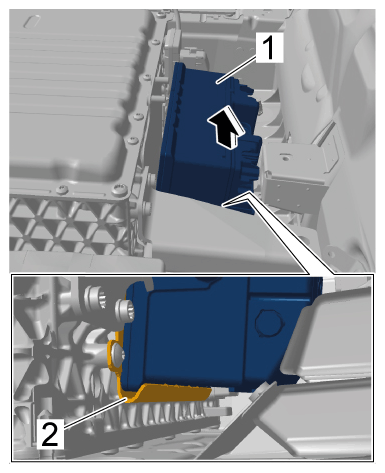

   Guide 48-volt additional battery -1-  correctly into the bracket at the bottom -2-  .

   Tighten fastening nuts on bracket to > Tightening torque 10 Nm (7.5 ftlb.)  .

   Tighten fastening nuts on battery terminals to > Tightening torque 8 Nm (6 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

48-volt additional battery
