WM, 2X00IN Test Log: Pilot Line Fault Finding: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

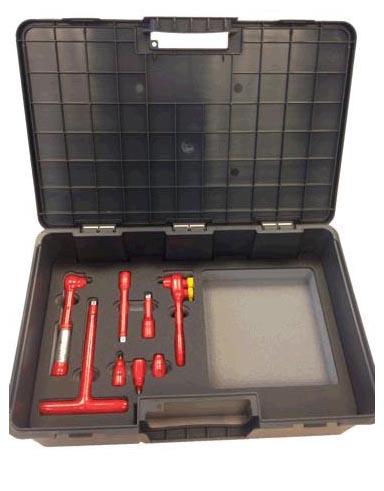

Insulated Tool Set	Vehicle-specific workshop equipment	>VAS 6883	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Handheld multimeter	General workshop equipment	>V.A.G 1526E	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
measurement tool set	Special tool	>9684	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

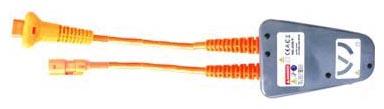

High-voltage test adapter HVA 280	Vehicle-specific workshop equipment	>VAS 6558/9-6	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
High-voltage test adapter HVR 40	Vehicle-specific workshop equipment	>VAS 6558/9-7	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
