Dme Control Unit
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

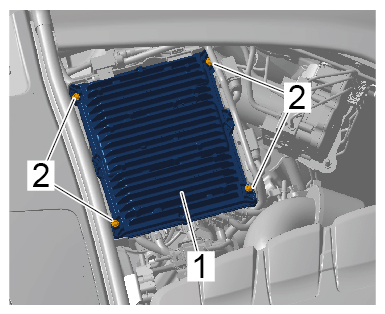

| DME (diesel) control unit to holder |
Item 2 |
Tightening torque |
5 Nm (3.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |

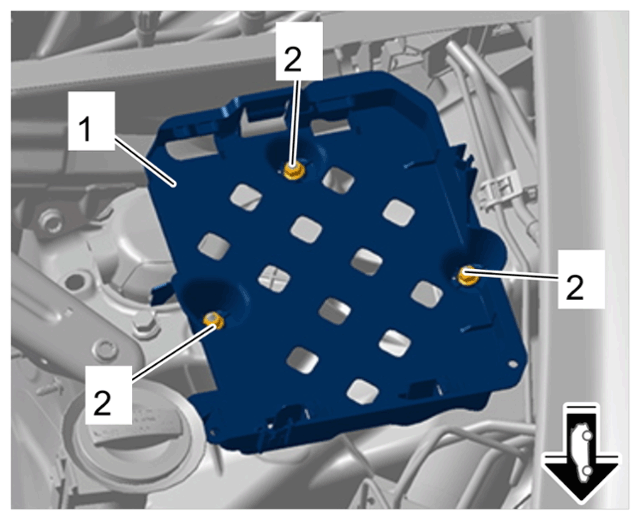

| Nuts securing DME control unit holder to body |
Item 2 |
Tightening torque |
3 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
DME control unit holder |
