Ignition System: Ignition

WARNING: This page is about a different variant/trim than selected.

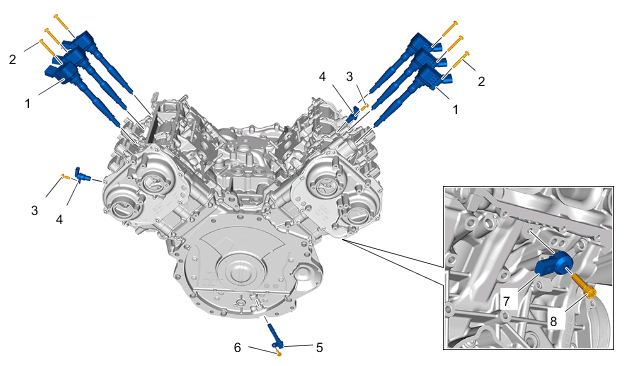

Fig 1: Ignition Component Location With Torque Specification - V6 Bi-Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ignition, V6 Bi-Turbo

1	Ignition coils
2	Double screw, M6 x 45-M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
3	Screw, M6 x 16 > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
4	Camshaft sensor
3	Nuts
5	Crankshaft pulse sender
6	Screw, M6 x 16>Initial tightening 3 Nm (2 ftlb.) (2.2 ftlb.) >Torque angle 90°
7	Knock sensor
8	Screw, M8 x 30 > Tightening torque 30 Nm (22 ftlb.) (22.1 ftlb.)
Not shown	Spark plug (old and new)>Tightening torque 23 Nm (17 ftlb.) (17 ftlb.)
Not shown	Nut securing ground line to double screw for ignition coil>Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)
