Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

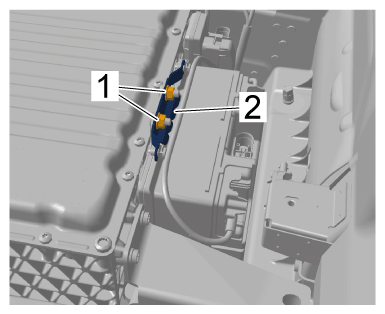

Fastening nuts on 48-volt battery retaining bracket	Item 1	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery retaining bracket
Electric lines on 48-volt additional battery	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts

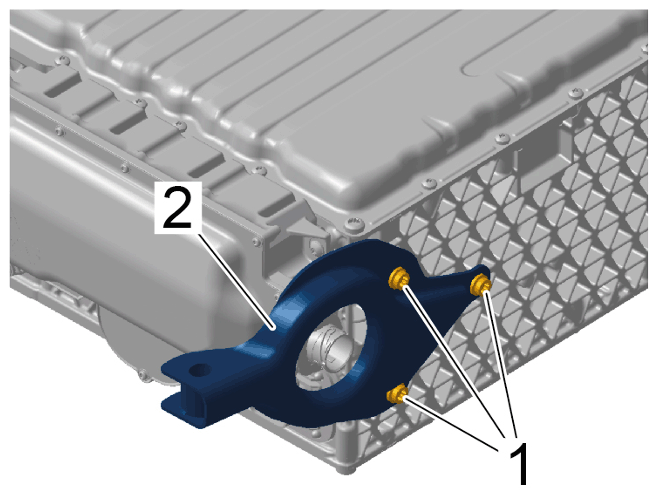

Fastening screws securing holder to high-voltage battery	Item 1	Initial tightening	20 Nm (15 ftlb.)
Fastening screws securing holder to high-voltage battery	Item 1	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for holder

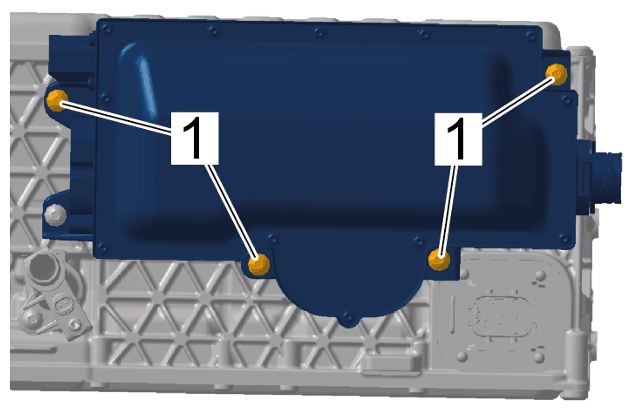

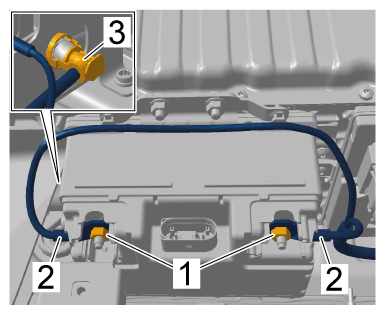

Fastening screws securing E-box to high-voltage battery	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws on E-box

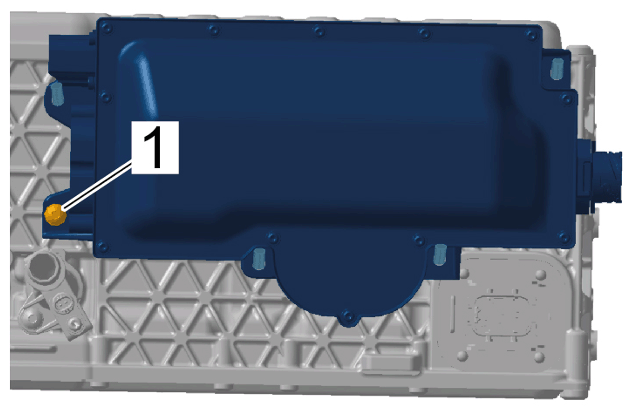

Fastening screw securing E-box to high-voltage battery	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. E-box

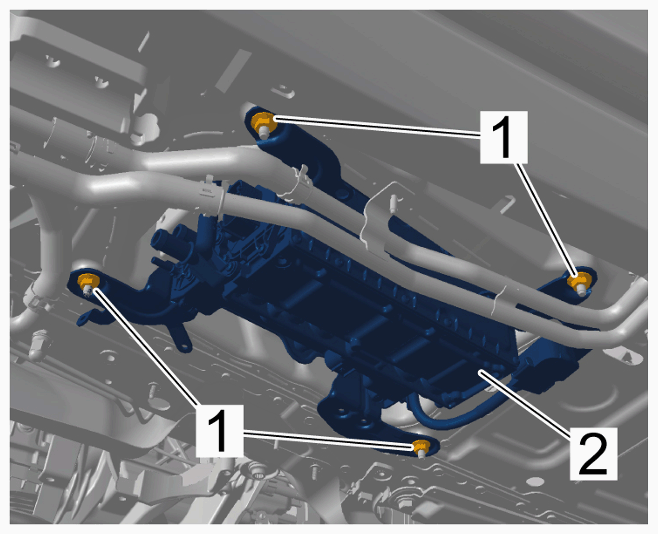

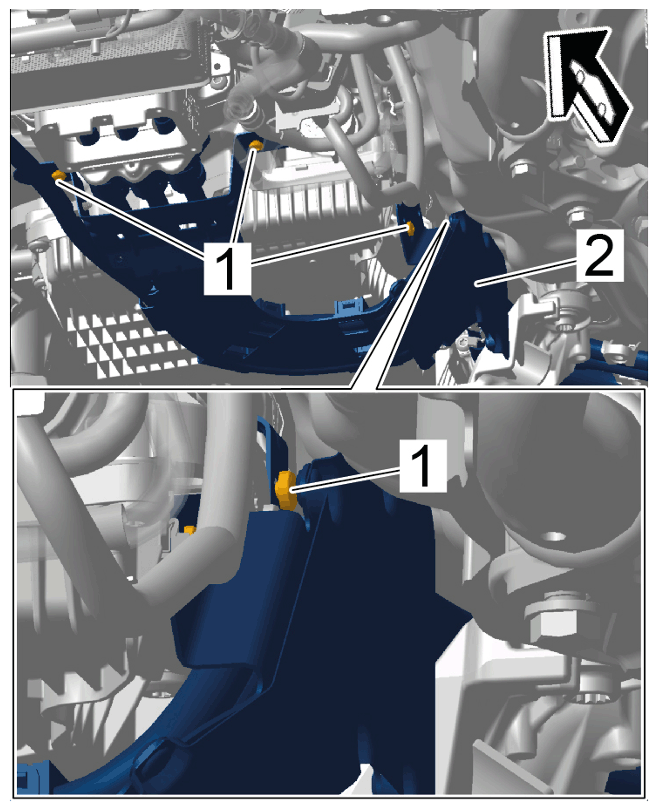

Fastening nuts securing holder for power electronics for high-voltage system to underbody	Item 1	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Power electronics for high-voltage system

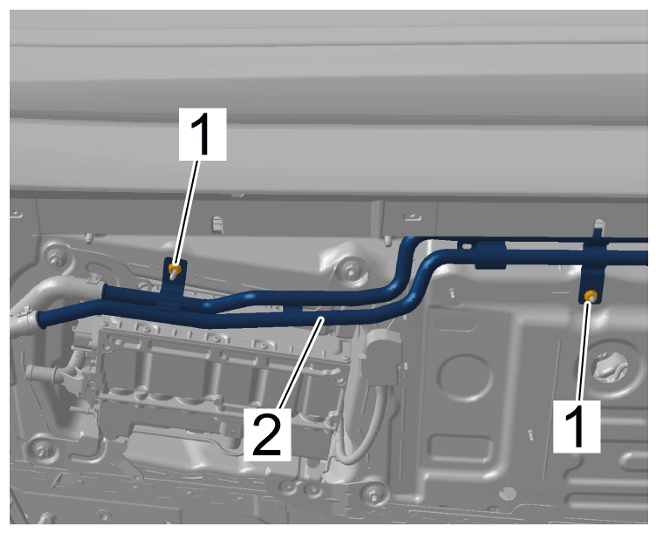

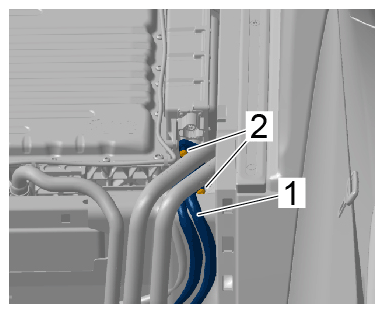

Fastening nuts on coolant lines for high-voltage system	Item 1	Tightening torque	3.6 Nm (2.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant line

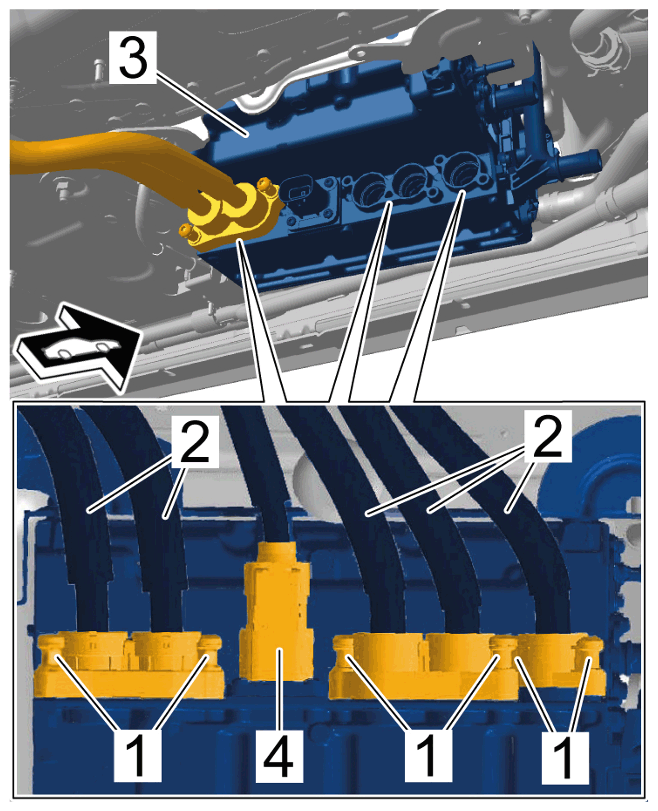

Tighten fastening screws securing high-voltage lines to power electronics for high-voltage system	Item 1	Tightening torque	7 Nm (5.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

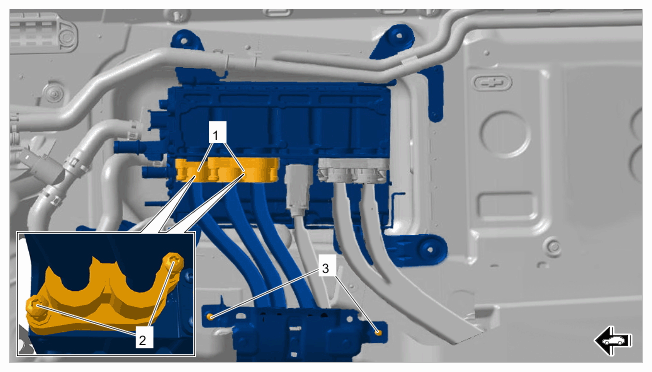

Fastening nut securing line guide for high-voltage line to underbody	Item 3	Torque	5 Nm (3.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage lines

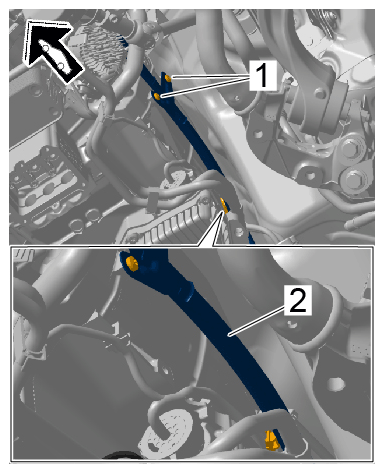

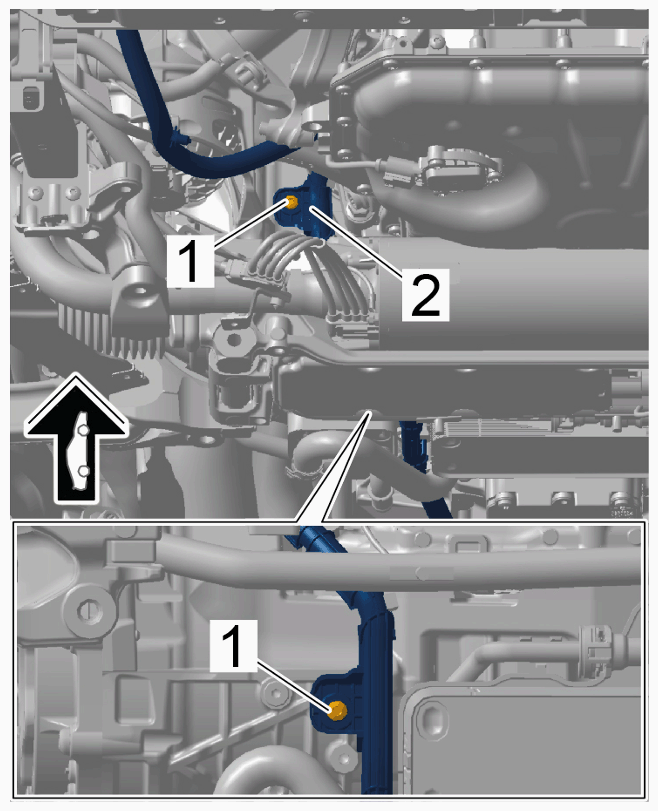

Fastening screws for cable duct for high-voltage line from power electronics to electric motor	Item 1	Tightening torque	9 Nm (6.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Equipotential bonding line to body		Tightening torque	12 Nm (8.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Equipotential bonding line

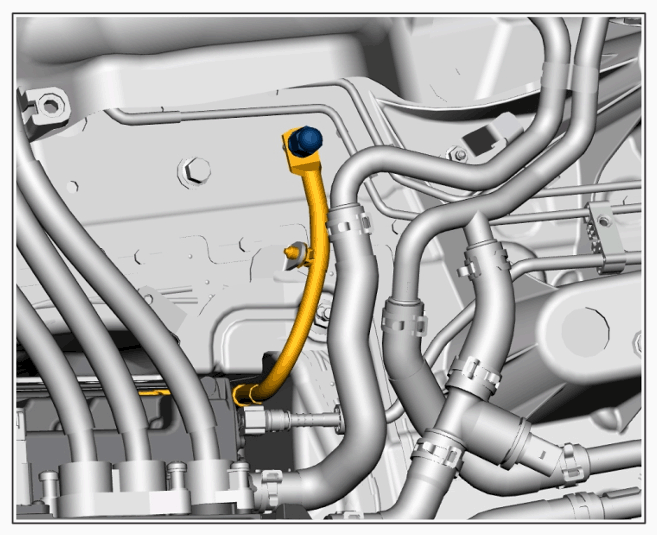

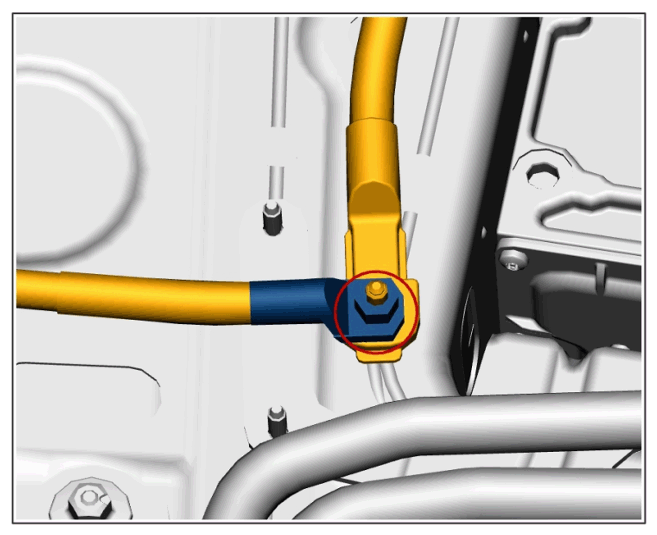

Battery positive terminal line to connector		Tightening torque	12 Nm (8.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery positive pole line

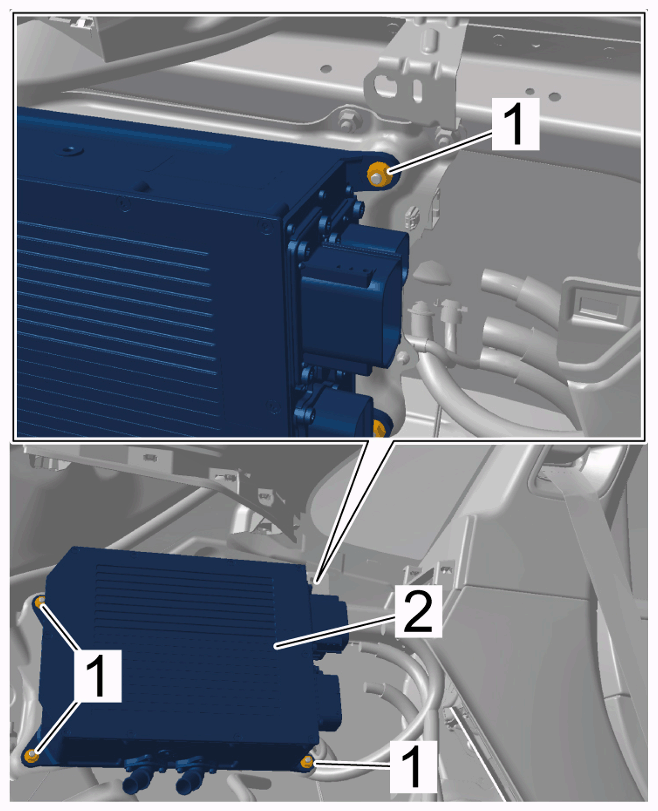

Fastening nuts securing high-voltage charger to holder	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage charger

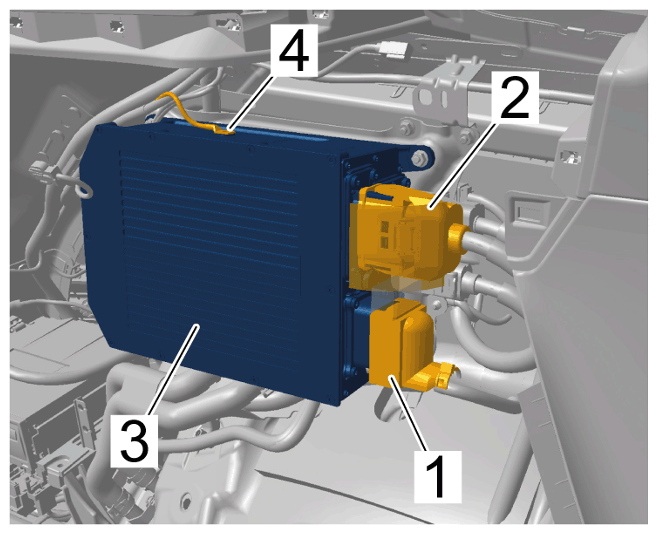

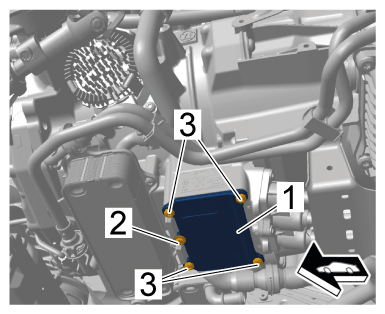

Fastening screw securing ground line to high-voltage charger	Item 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage charger
Fastening screws securing high-voltage lines to high-voltage battery	Item 2	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

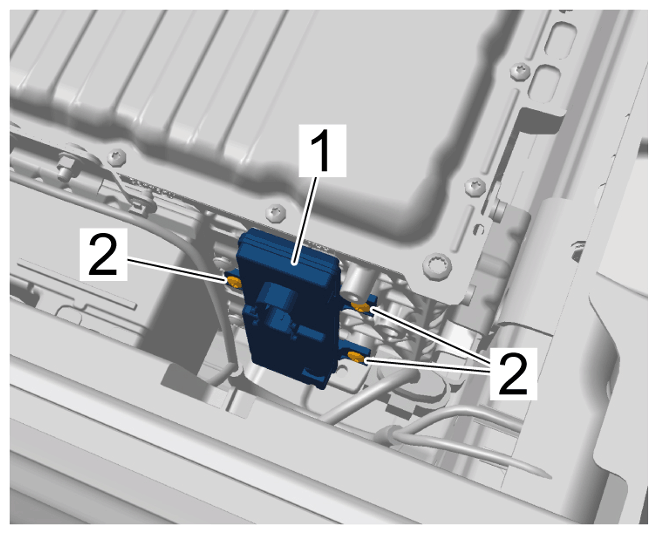

Fastening screws securing high-voltage battery control unit to high-voltage battery	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage battery control unit

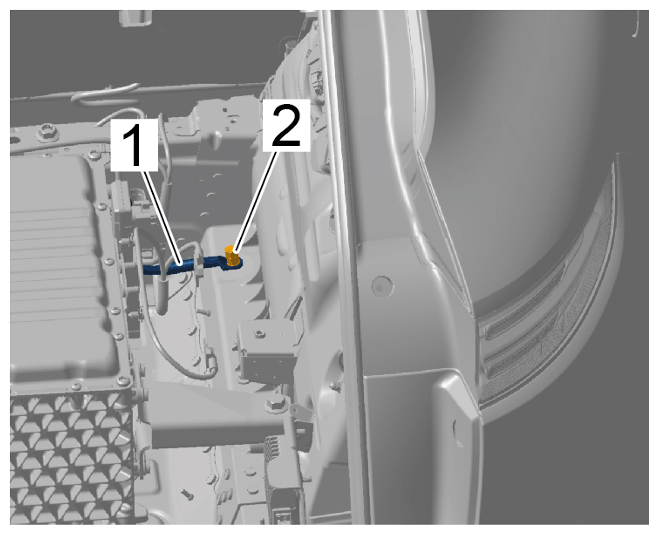

Fastening nut securing equipotential bonding line to body	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Equipotential bonding line

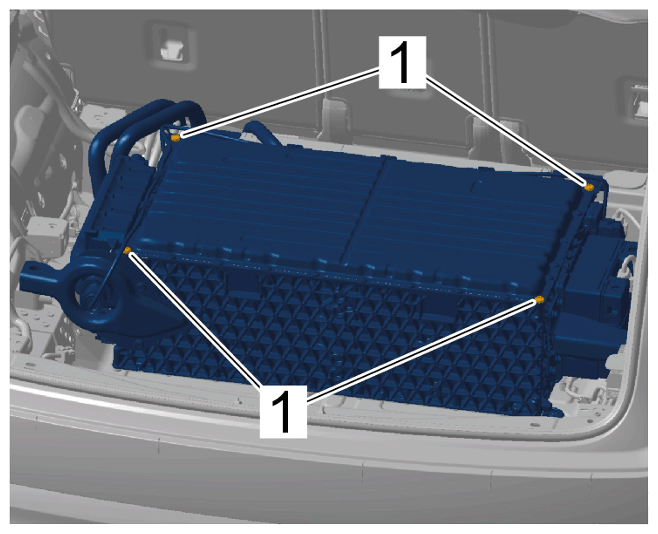

Fastening screws securing housing to high-voltage battery	Item 1	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage battery

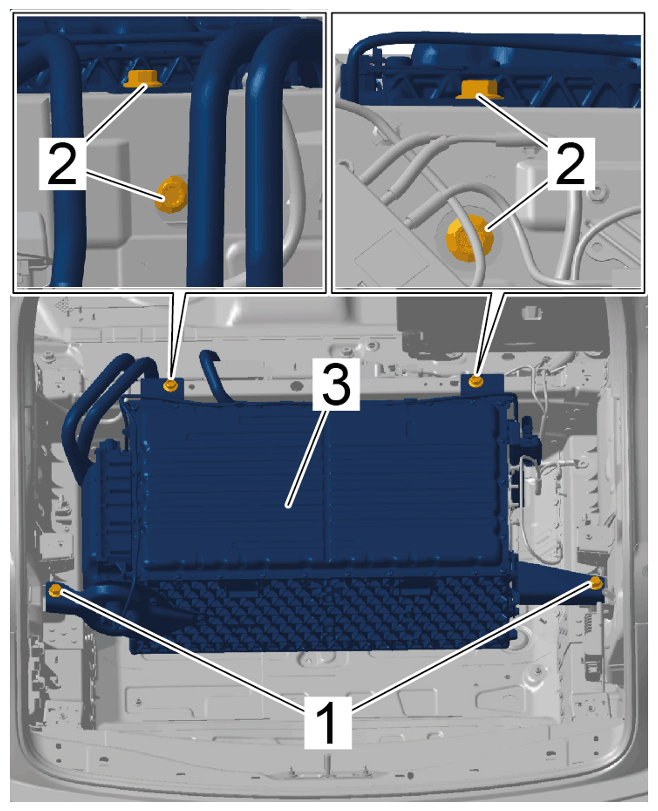

Fastening screws securing high-voltage battery to body	Item 1	Initial tightening	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage battery
Fastening screws securing high-voltage battery to body	Item 1	Final tightening	90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage battery
Fastening screws securing high-voltage battery to body	Item 2	Tightening torque	100 Nm (74 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. High-voltage battery

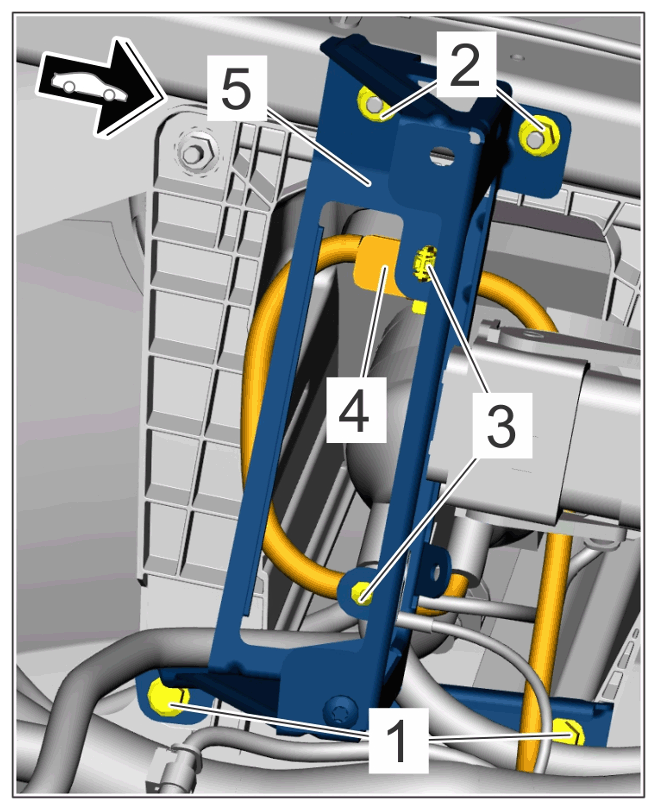

Fastening screws for high-voltage charger holder, variant 1	item 3	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Fastening nuts for high-voltage charger holder, variant 1	item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder

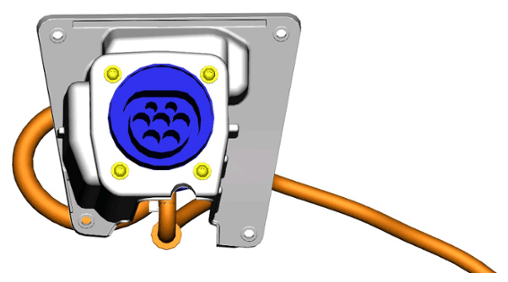

Fastening screws for charging socket	Item 1	Tightening torque	5.6 Nm (4.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for charging socket

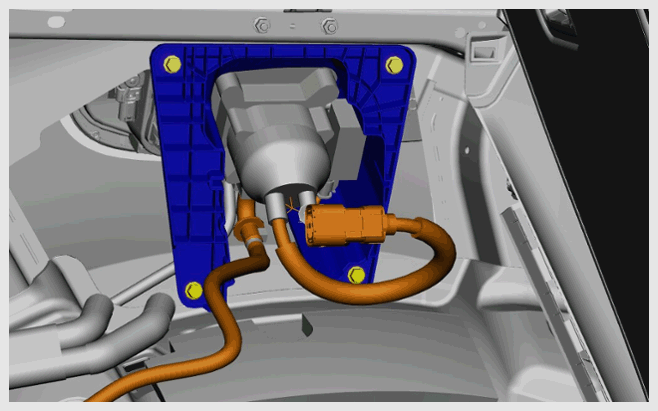

Charging socket holder to body		Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on charging socket holder

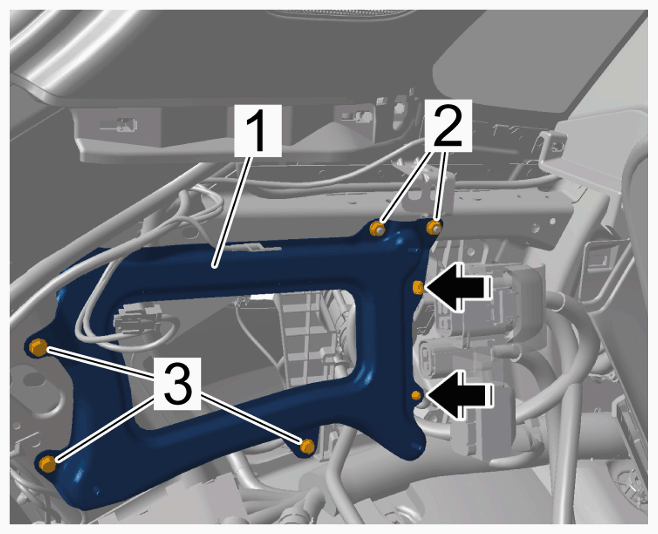

Fastening nuts for high-voltage charger holder - variant 2	item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Fastening screws for high-voltage charger holder - variant 2	item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Fastening screws securing high-voltage line from power electronics to air-conditioning compressor on transmission (R4 and V6)	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screws securing high-voltage line from power electronics to air-conditioning compressor on transmission (V8)	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screws for transmission housing cover at high-voltage connection for electric motor	Item 3	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for high-voltage connection for electric motor

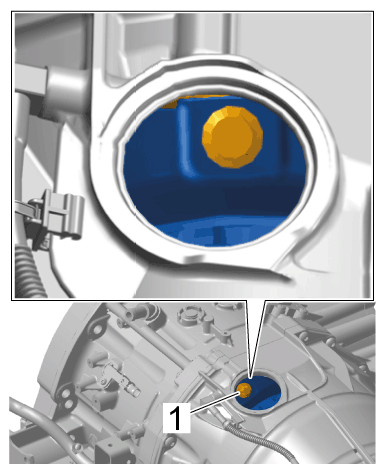

Fastening screw for transmission housing cover at high-voltage connection for electric motor	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for high-voltage connection for electric motor

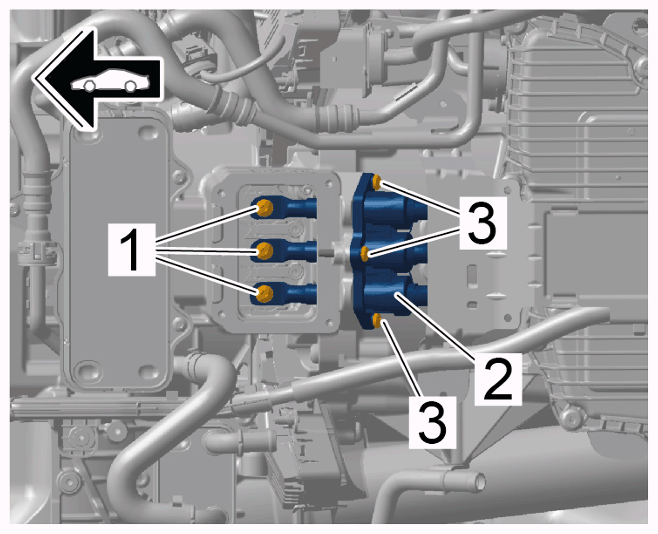

Fastening screws for high-voltage line from power electronics to electric motor at electric motor	Item 1	Tightening torque	21 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric motor
Fastening screws for high-voltage line from power electronics to electric motor holder at electric motor	Item 3	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric motor
Fastening screws securing torque converter to electric motor	Item 1	Tightening torque	62 Nm (46 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Torque converter screws

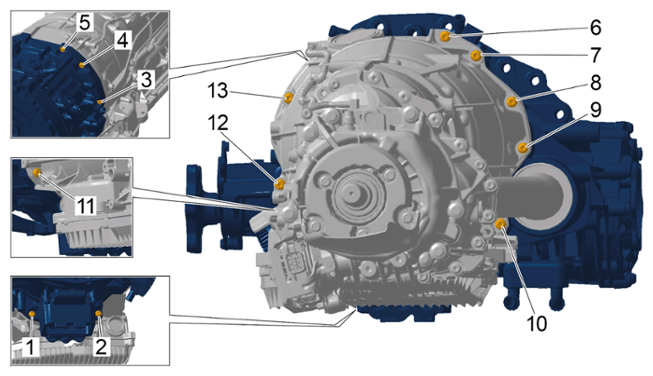

Fastening screws securing electric motor to automatic transmission	Item 1, 5, 3	Initial tightening	12 Nm (9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. First initial tightening for screws for electric motor
Fastening screws securing electric motor to automatic transmission	Item 1, 2, 3, 4, 5	Final tightening	24 Nm (18 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Second initial tightening for screws for electric motor
Fastening screws securing electric motor to automatic transmission	Item 6, 7, 8, 9, 10, 11, 12, 13	Final tightening	24 Nm (18 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Final tightening for screws for electric motor

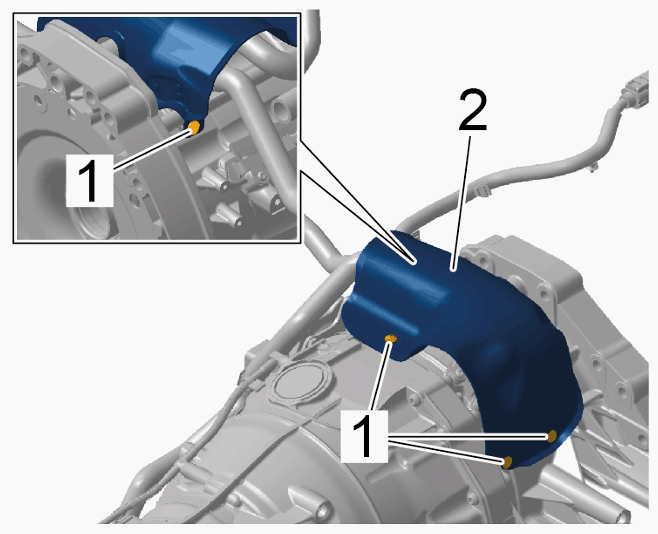

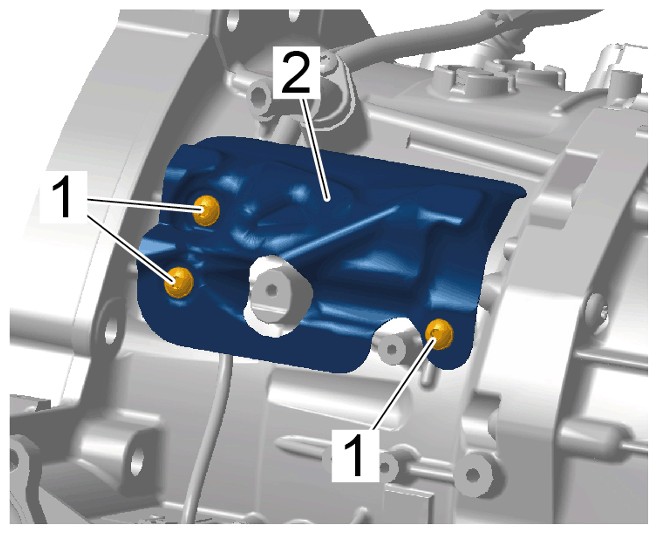

Fastening screws securing heat shield to electric motor	Item 1	Tightening torque	12 Nm (9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Fastening screws securing side heat shield to electric motor	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield

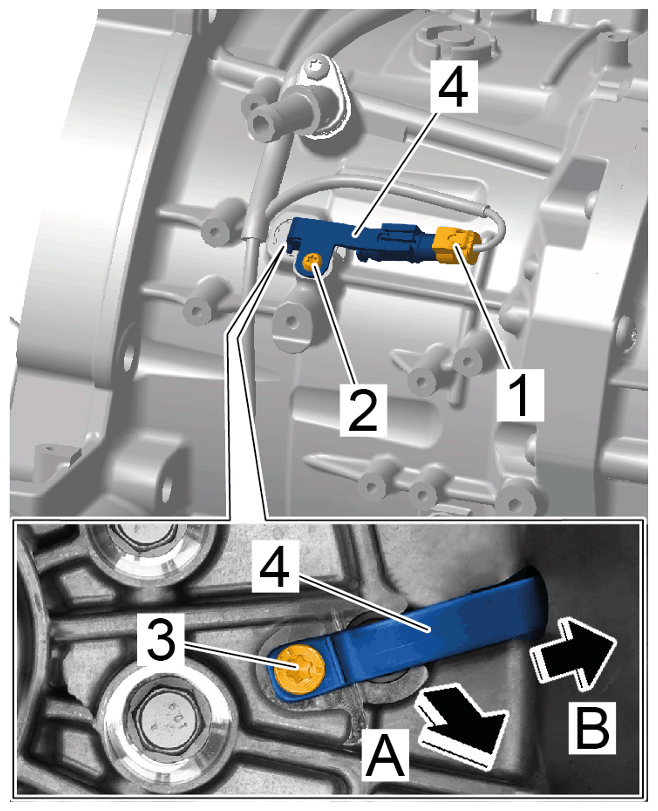

Fastening screws securing temperature sensor to electric motor	Item 2 and 3	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Temperature sensor

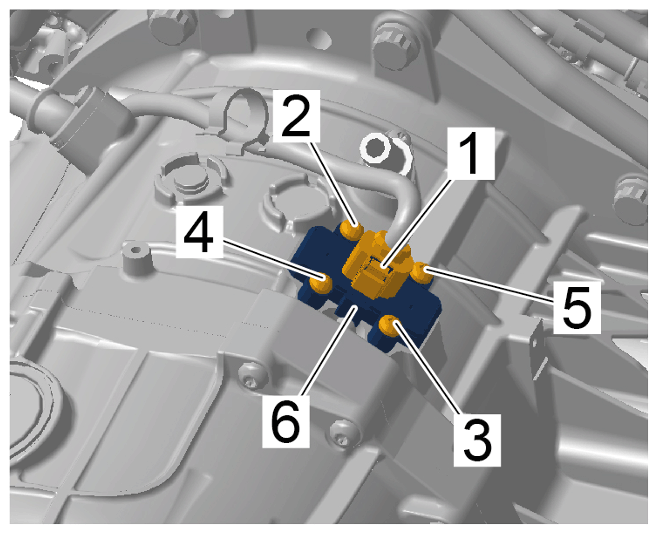

Fastening screws securing rotor position sensor to electric motor	Item 2 to 5	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rotor position sensor
