Charging Socket

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

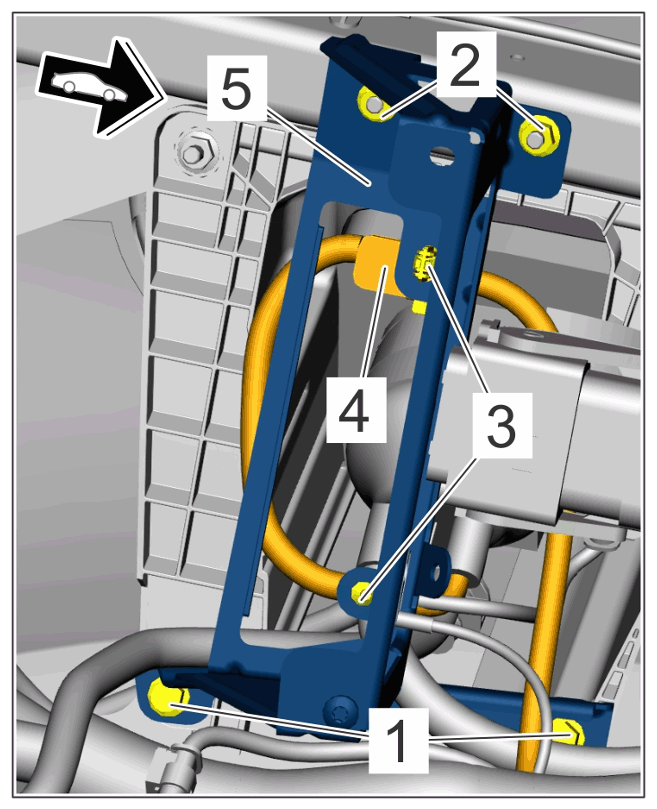

Fastening screws for high-voltage charger holder, variant 1	item 3	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Fastening nuts for high-voltage charger holder, variant 1	item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Fastening screws for charging socket	Item 1	Tightening torque	5.6 Nm (4.1 ftlb.)

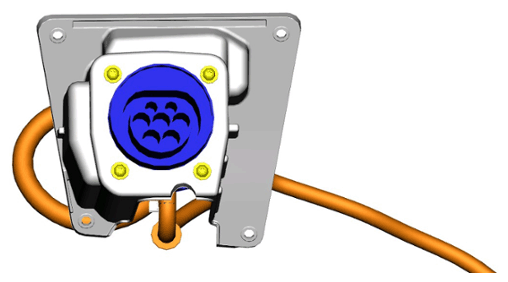

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for charging socket
Charging socket holder to body		Tightening torque	6 Nm (4.4 ftlb.)

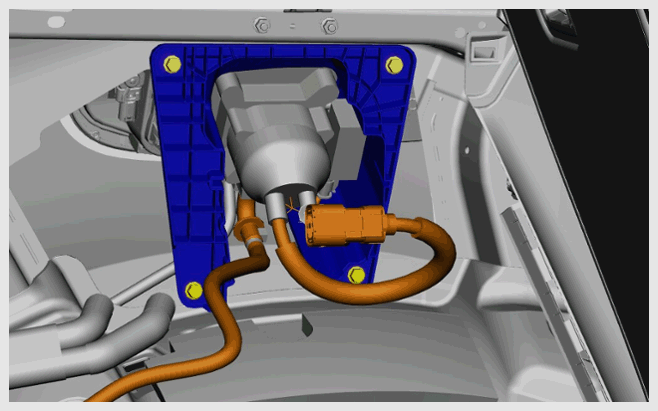

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on charging socket holder

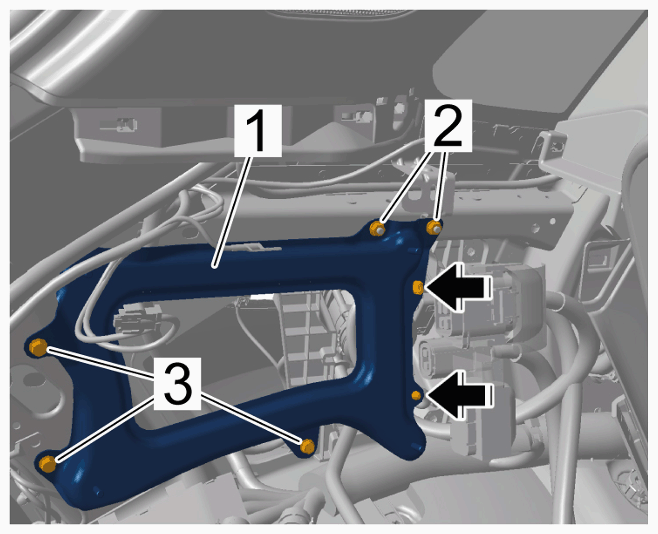

Fastening nuts for high-voltage charger holder - variant 2	item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
Fastening screws for high-voltage charger holder - variant 2	item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
