48-Volt Additional Battery
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance |

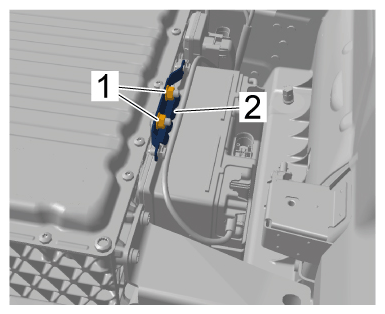

| Fastening nuts on 48-volt battery retaining bracket |
Item 1 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Battery retaining bracket |

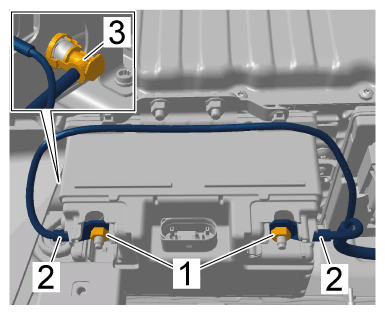

| Electric lines on 48-volt additional battery |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening nuts |
