Measurement 6

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Preliminary work for measurement 6 (4-cylinder and V6 engine)

Remove cowl panel cover.
Refer to the appropriate service information.

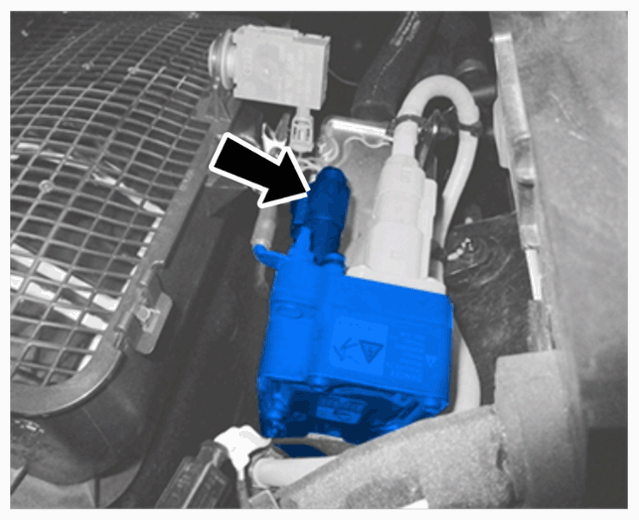

Release and disconnect connector for electric passenger compartment heater.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric passenger compartment heater
Perform measurement 6.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

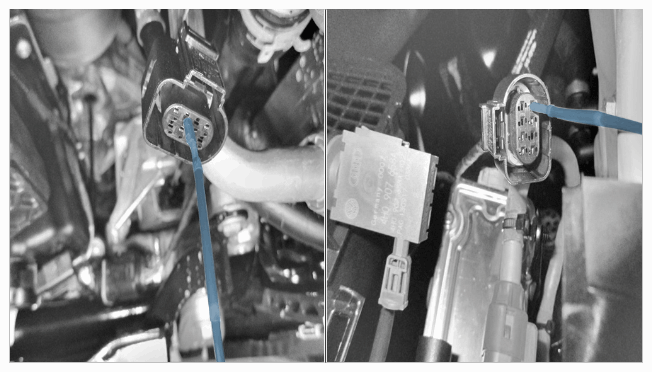

Measurement 6 (shown as an example)
Resistance measurement at service disconnector, pin 3 and electric passenger compartment heater, pin 7
Refer to the wiring diagram for the pin assignment of the connectors
1. 4.1 Setpoint value < 1.0 Ohm
Evaluating measurement 6
1. 5.1 If the measured value is within the tolerance range, continue with measurement 7 .
2. 5.2 If the measured value is outside of the tolerance range, continue with measurement 6.1 .
Preliminary work for measurement 6.1

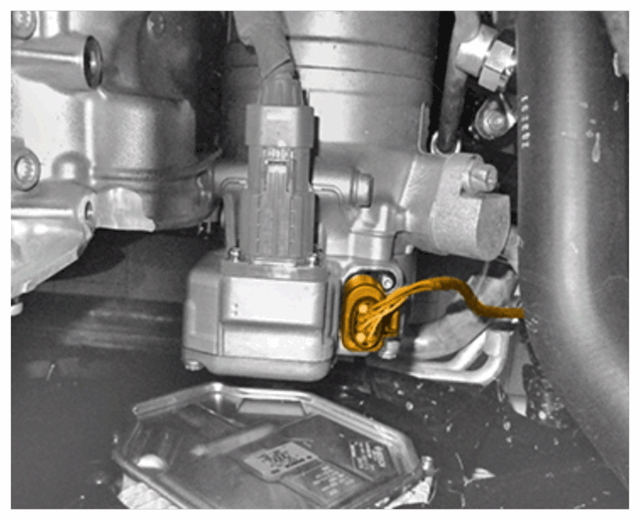

Release and disconnect connector for electric air-conditioning compressor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric air-conditioning compressor
Perform measurement 6.1.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

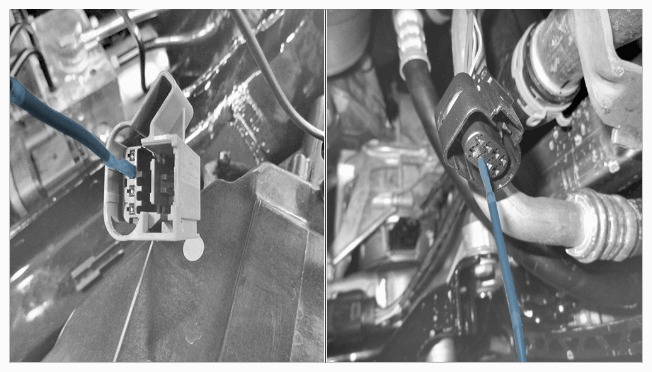

Measurement 6.1
Resistance measurement at service disconnector, pin 3 and electric air-conditioning compressor, pin 3
Refer to the wiring diagram for the pin assignment of the connectors
1. 8.1 Setpoint value < 0.5 Ohm
Evaluating measurement 6.1
1. 9.1 If the measured value is within the tolerance range, continue with measurement 6.2 .
2. 9.2 If the measured value is outside of the tolerance range, visually inspect connectors and repair them if necessary. After carrying out repairs, repeat measurement 6.
Perform measurement 6.2.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

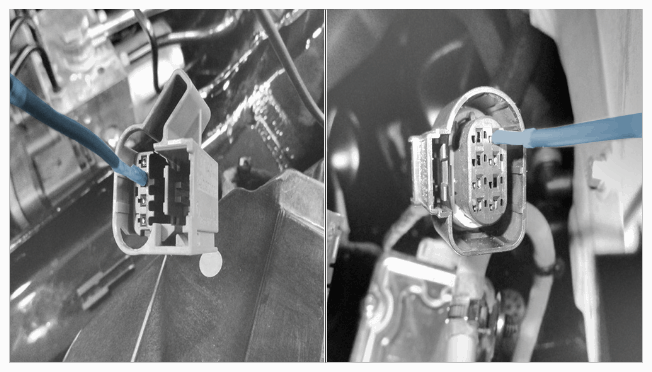

Measurement 6.2
Resistance measurement at electric air-conditioning compressor, pin 4 and electric passenger compartment heater, pin 7
Refer to the wiring diagram for the pin assignment of the connectors
1. 11.1 Setpoint value < 0.5 Ohm
Evaluating measurement 6.2
1. 12.1 If the measured value is within the tolerance range, repeat measurement 6 .
  Contact Technical Support
2. 12.2 If the measured value is outside of the tolerance range, visually inspect connectors and repair them if necessary.
  After carrying out repairs, repeat measurement 6.
