Measurement 4

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Preliminary work for measurement 4 (V8 engine)

Remove front right wheel housing liner.
Refer to the appropriate service information.
Unclip connector at connection point (electric air-conditioning compressor) from holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

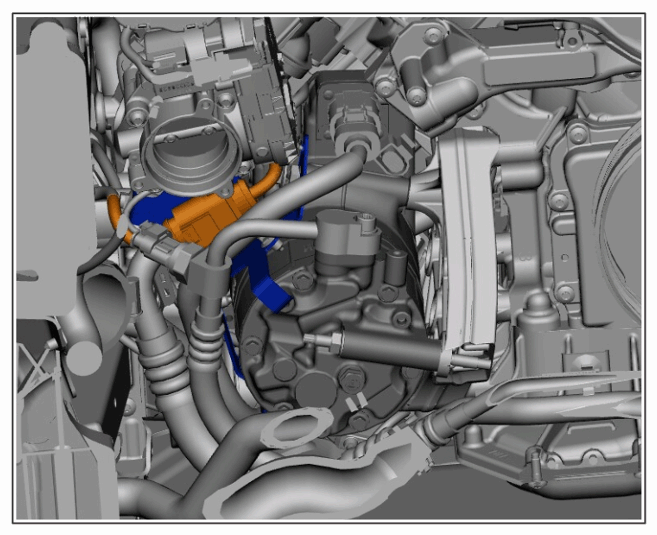

Connection point electric air-conditioning compressor (front view)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

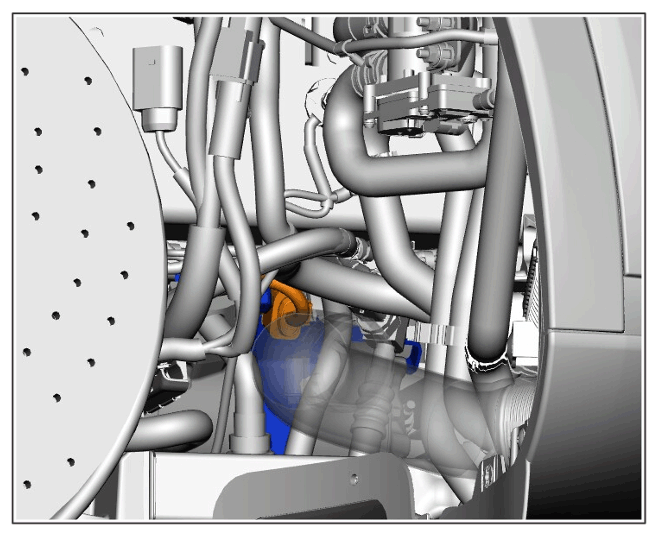

Connection point electric air-conditioning compressor (right wheel housing view)
Release and open plug connection at the connection point.
Perform measurement 4.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

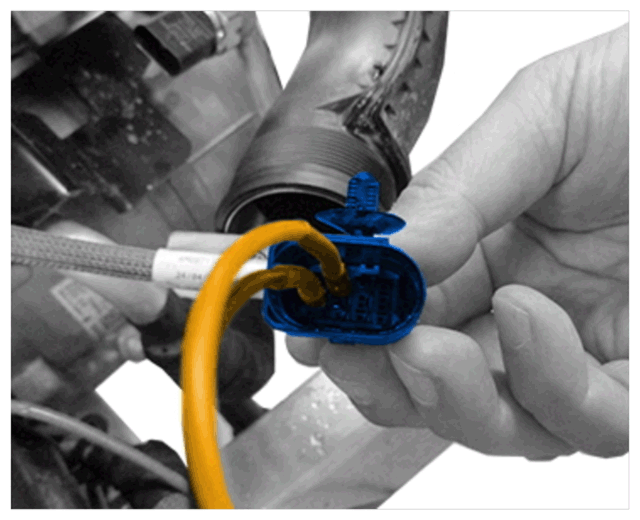

Measurement 4 (shown as an example)
Measure resistance at service disconnector, pin 3 and connector at connection point for electric air-conditioning compressor (female), pin 2.
Refer to the wiring diagram for the pin assignment of the connectors
1. 5.1 Setpoint value < 0.5 Ohm
Evaluating measurement 4
1. 6.1 If the measured value is within the tolerance range, continue with measurement 4.1 .
2. 6.2 If the measured value is outside of the tolerance range, visually inspect connectors and repair them if necessary. After carrying out repairs, repeat measurement 2.
Perform measurement 4.1.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement 4.1 (shown as an example)

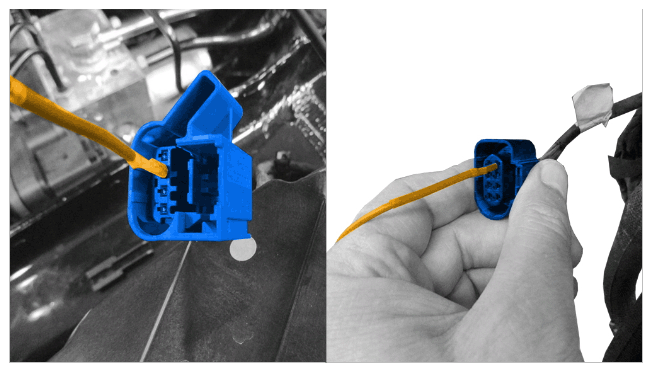

Resistance measurement on connector at connection point for electric air-conditioning compressor (male), pin 2 and pin 3
Refer to the wiring diagram for the pin assignment of the connectors
1. 8.1 Setpoint value <1.0 Ohm
Evaluating measurement 4.1
1. 9.1 If the measured value is within the tolerance range, continue with measurement 5 .
2. 9.2 If the measured value is outside the tolerance range, visually inspect connectors (also on electric air-conditioning compressor) and repair if necessary.
  After carrying out repairs, repeat measurement 2.
