Measurement 1

WARNING: This page is about a different variant/trim than selected.
WARNING: Incorrect handling of high-voltage components
  • Electric shock
  • Short circuit
  • Fire
  • Explosion

    → Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

    → Required qualification: High voltage technician or high voltage expert.

    → Observe national requirements and legislation for this work.

    → Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set  when working on these components.

    → Observe general warning notes for working on the high-voltage system.

    > 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Preliminary work for measurement 1

  1. Remove luggage compartment cover.
  2. Release and disconnect connector for high-voltage battery control unit.
  3. Jumper pin 66 and pin 77.

    Refer to the wiring diagram for the pin assignment of the connectors

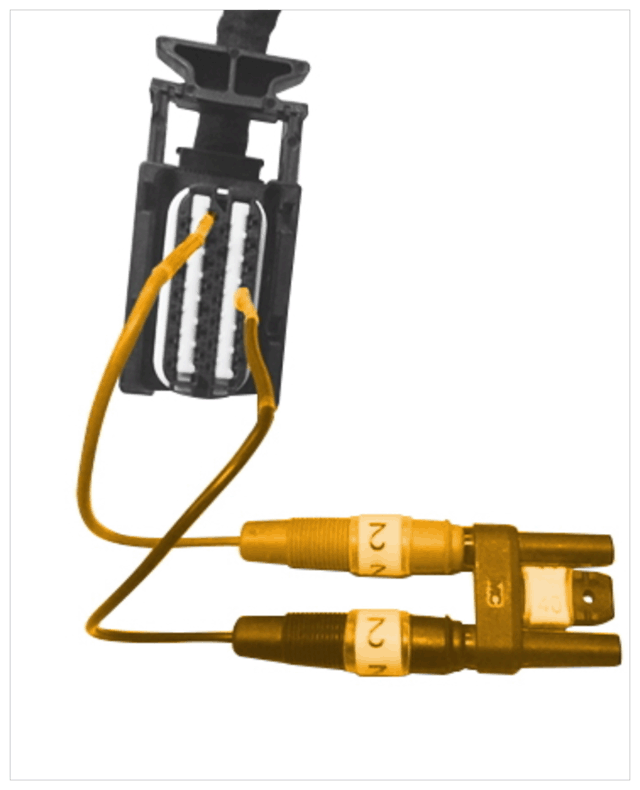

    G15257775Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    High-voltage battery control unit connector (shown as an example)

  4. Disconnect E-box connector.
  5. Jumper pin 9 and pin 14.

    Refer to the wiring diagram for the pin assignment of the connectors

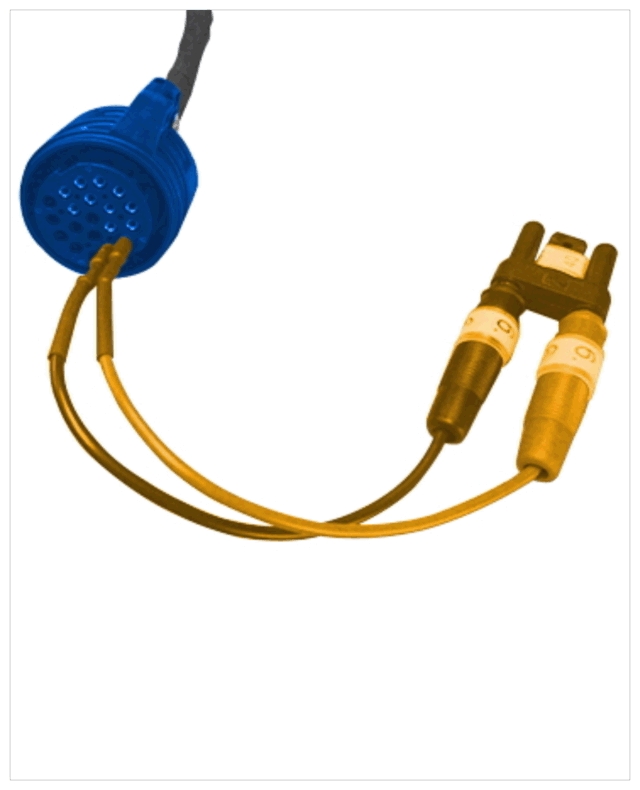

    G15257776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    E-box connector (shown as an example)

  6. Unclip connector at connection point (HV battery control unit) from holder.

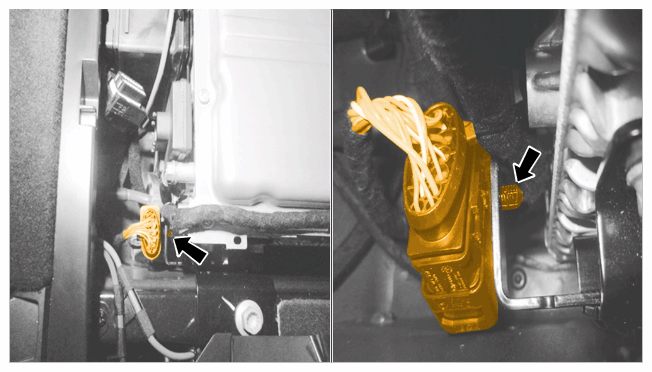

    G15257777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection point (HV battery control unit)

  7. Release and open plug connection at the connection point.
  8. Perform measurement 1.

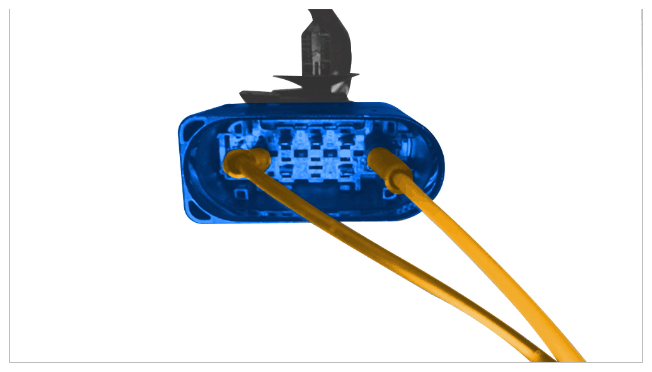

    G15257778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Measurement 1 (shown as an example)

  9. Measure resistance at connector at connection point (male), pin 4 and pin 11.

    Refer to the wiring diagram for the pin assignment of the connectors

    1. 9.1 Setpoint value < 1.0 Ohm
  10. Evaluate measured result
    1. 10.1 If the measured value is within  the tolerance range, continue with measurement 2  .
    2. 10.2 If the measured value is outside  of the tolerance range, visually inspect all disconnected connectors. Repair them if necessary.

      After carrying out repairs, repeat measurement 1.
