Measurement 3

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Preliminary work for measurement 3

(High-voltage charger, charging socket)

Release and disconnect high-voltage line (high-voltage charger - electric passenger compartment heater) at the high-voltage charger.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

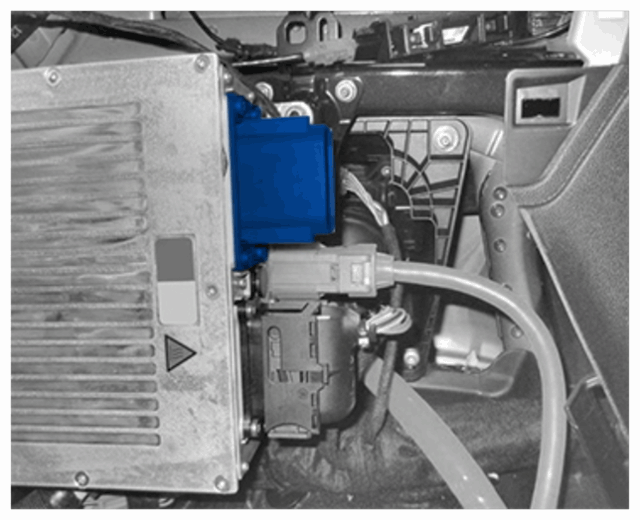

Connection for electric passenger compartment heater at high-voltage charger

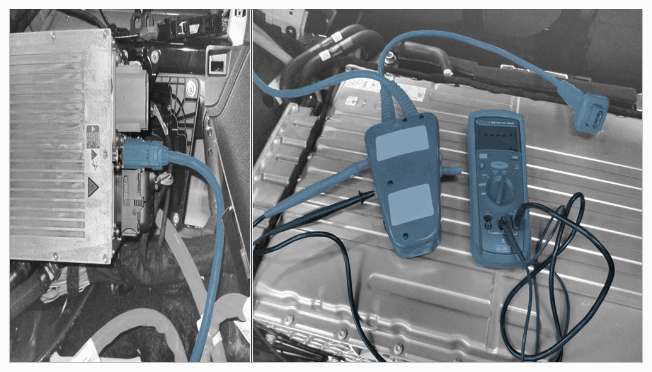

Connect high-voltage test adapter > VAS 6558/9-6 - High-voltage test adapter HVA 280 to high-voltage charger connection for electric passenger compartment heater. Leave the second connection open.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement 3
Perform measurement 3.
1. 3.1 Setpoint value > 550 MOhm
Evaluate measured result
1. 4.1 If the measured value is within the tolerance range, continue with measurement 4
2. 4.2 If the measured value is outside of the tolerance range, continue with measurement 3.1
Preliminary work for measurement 3.1

(High-voltage charger)
Release and disconnect connection for charging socket at the high-voltage charger.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

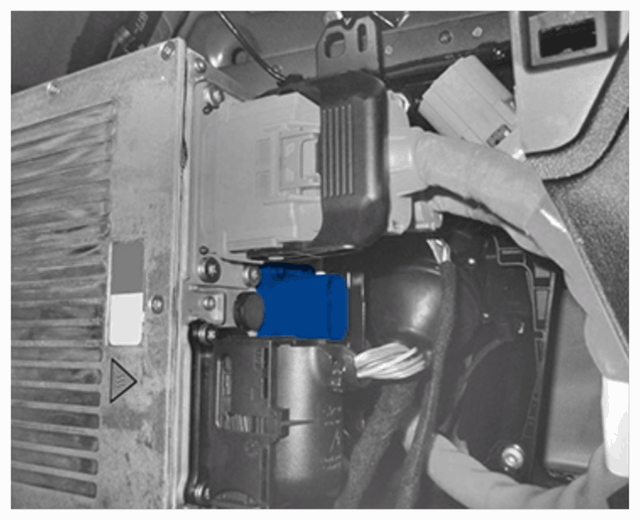

Charging socket connection at high-voltage charger

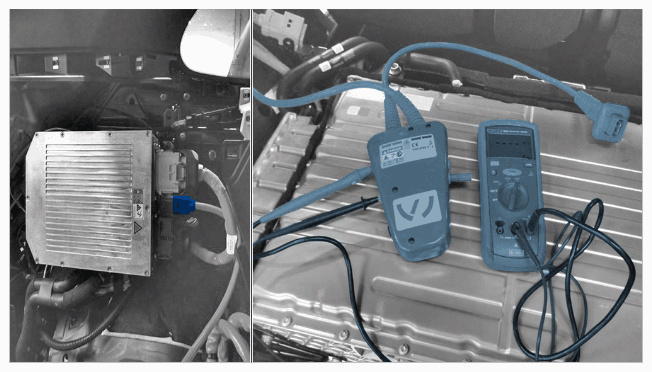

Connect high-voltage test adapter > VAS 6558/9-6 - High-voltage test adapter HVA 280 to high-voltage charger connection for electric passenger compartment heater. Leave the second connection open.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measurement 3.1
Perform measurement 3.1.
1. 7.1 Setpoint value > 550 MOhm
Evaluate measured result.
1. 8.1 If the measured value is within the tolerance range, replace charging socket.
  After replacing the charging socket, repeat measurement 1.
2. 8.2 If the measured value is outside of the tolerance range, replace high-voltage charger.
  After replacing the high-voltage charger, repeat measurement 1.
