Removing Oxygen Sensor Upstream Of Catalytic Converter

WARNING: This page is about a different variant/trim than selected.
CAUTION: Risk of damage to sensor if handled incorrectly!
  1. → Do not remove the plastic cap on the thread until just prior to fitting the sensor. The grease used on the thread must never get into the connector.
  2. → Protect sensors - before and after fitting - against mechanical shocks.
  3. → Sensors that were dropped on the floor must not be used owing to the risk of a broken ceramic insulator.
  4. → The cables must not be twisted or kinked when the sensors are screwed in. Avoid pulling on the cable and connector.
  5. → Cleanliness in the housing of the plug connections is of utmost importance for the oxygen sensor to function properly. Particles of dirt can impair the function of the sensor. The connector must therefore be protected against any and all types of soiling.
  6. → Sensors with a soiled or damaged connector must no longer be used.
  7. → Protect the cables and connectors when carrying or moving the exhaust system with the sensors already fitted.
  8. → High-pressure cleaning equipment must not be used in the area of the sensors and plug connections.
  9. → Contact and corrosion agents, e.g. Stabilant, must not be applied to the plug contacts of the oxygen sensors.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.

Information

Information

The > 3337 - ring wrench set for oxygen sensor  is the ideal tool.

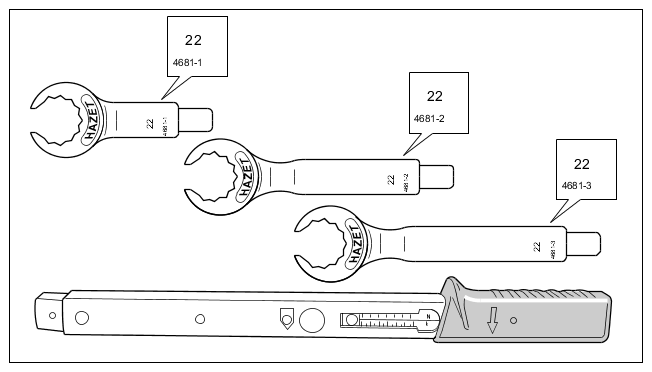

G15241357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensor tool

  1. Expose electric plug connection -1-  for oxygen sensor upstream of catalytic converter.

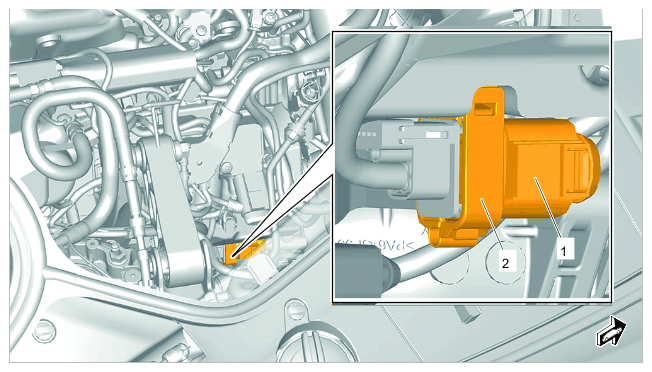

    G15241358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for oxygen sensor upstream of catalytic converter

    1. 1.1  Release and disconnect electric plug connection -1-  .
    2. 1.2  Unclip electric line from the holder -2-  and remove it by pulling it upwards.
  2. Expose electric line.

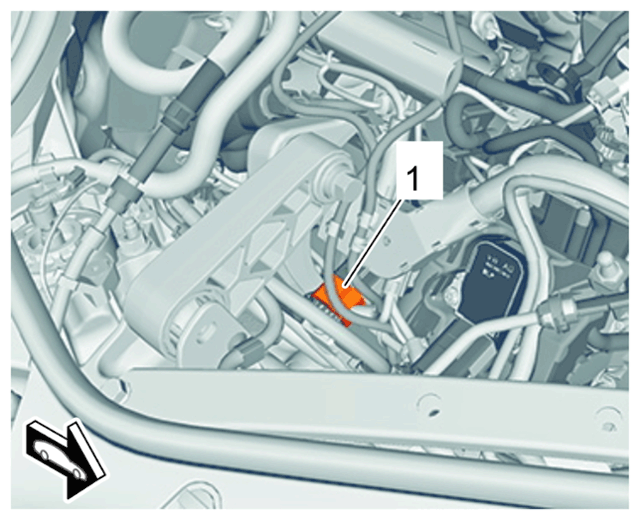

    G15241359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug connection adjacent to oxygen sensor upstream of catalytic converter

    1. 2.1  Release and disconnect electric plug connection -1-  for better access.
  3. Remove oxygen sensor upstream of catalytic converter -1-  .

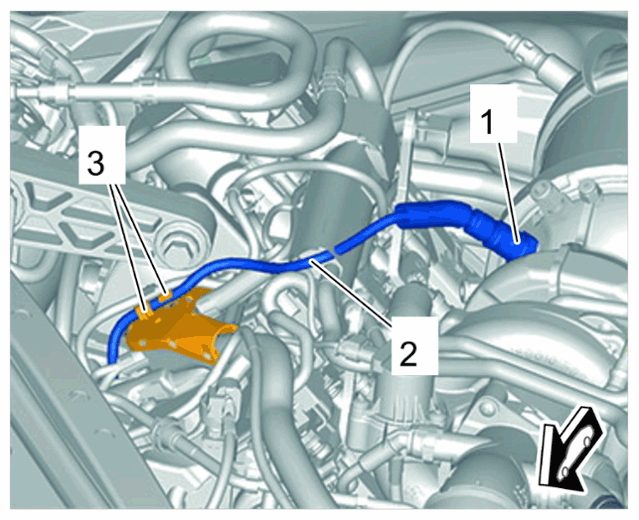

    G15241360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oxygen sensor upstream of catalytic converter

    1. 3.1  Loosen electric line -2-  from clips -3-  .
    2. 3.2  Loosen and unscrew oxygen sensor upstream of catalytic converter -1-  .
