Installing Intake-Air Distributor
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

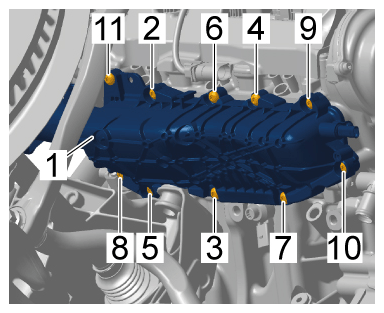

Tightening sequence for intake-air distributor screws
- 1.1
Tighten screws for intake-air distributor in the sequence -2 to 11-
.
> Initial tightening 8 Nm (6 ftlb.)
> Final tightening + 45°
- 1.1
Tighten screws for intake-air distributor in the sequence -2 to 11-
.
