Removing Centre Intake-Air Distributor

WARNING: This page is about a different variant/trim than selected.

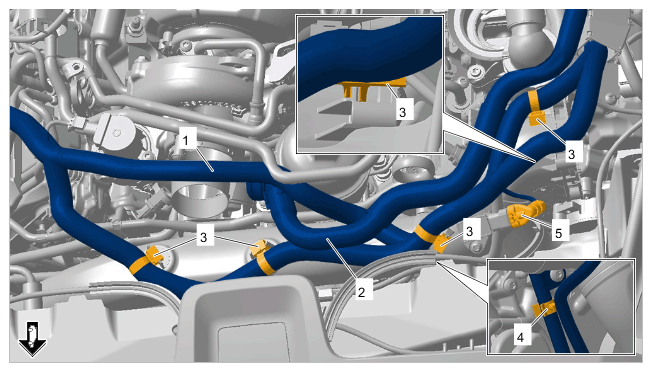

Disconnect electric wire harness -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
1. 1.1 Move vent line -2- aside.
2. 1.2 Unclip clips -3- .
3. 1.3 Unclip clip -4- .
4. 1.4 Release and disconnect electric plug connection -5- .
Release and disconnect line connections at the left -1 and 2- and close off connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connections, left

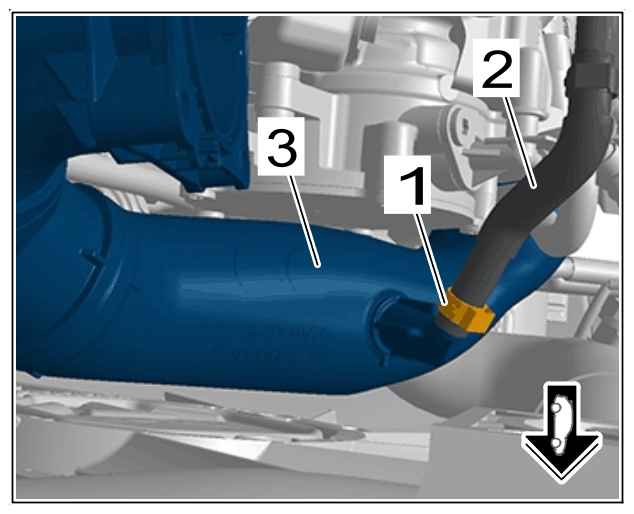

Loosen clamp -1- and pull the -2- cable off the centre -3- intake-air distributor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connection, left

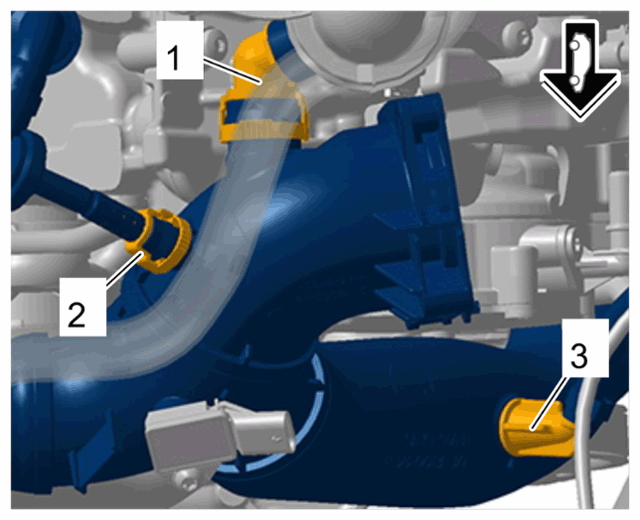

Release and disconnect line connection at the right -1- and close off connections using suitable stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connection, right

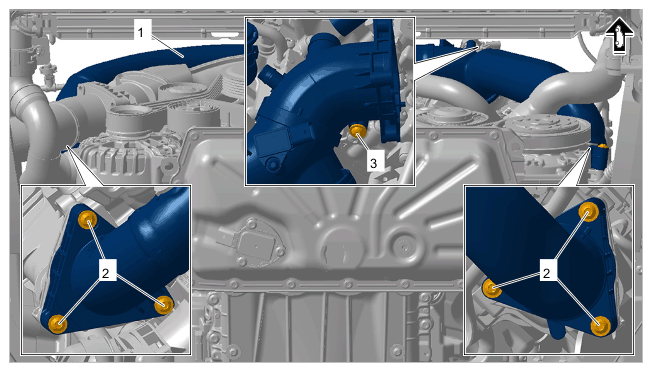

Remove centre intake-air distributor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre intake-air distributor
1. 5.1 Unscrew screws securing centre in take-air distributor to side intake-air distributors -2- .
2. 5.2 Unscrew top screw on centre intake-air distributor -3- .
3. 5.3 Guide centre intake-air distributor -1- up out of the engine compartment.
