Removing Throttle Housing

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect pressure hose -1-  .

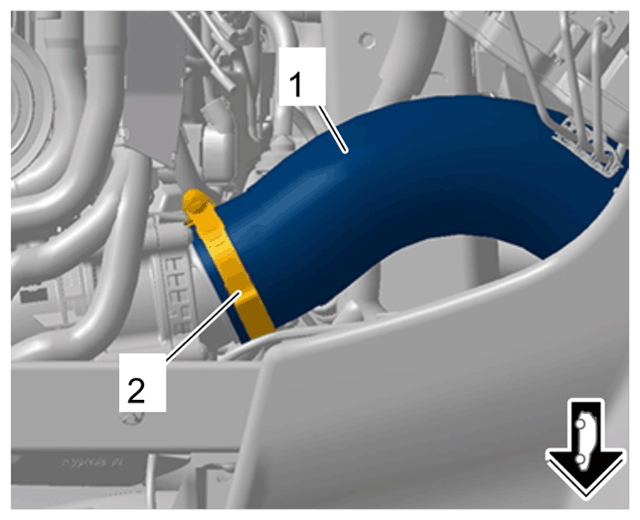

    G15241326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure hose on throttle housing

    1. 1.1  Loosen screw-type clamp on pressure hose -2-  .
    2. 1.2  Disconnect pressure hose -1-  together with screw-type clamp -2-  from the throttle housing.
  2. Remove throttle housing -1-  .

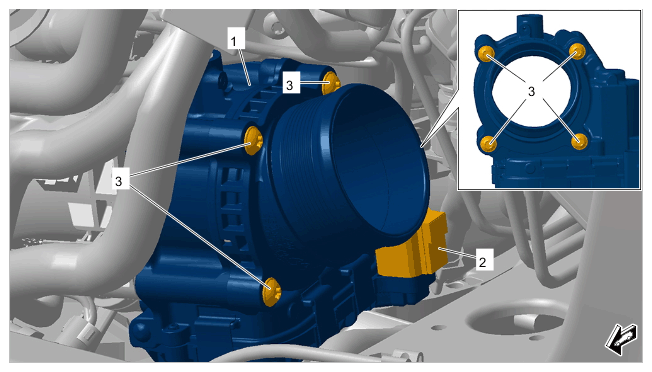

    G15241327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Throttle housing

    1. 2.1  Release and disconnect electric plug connection on throttle housing -2-  .
    2. 2.2  Unscrew screws on throttle housing -3-  .
    3. 2.3  Remove throttle housing -1-  .
