Removing Temperature Sensor For HV Battery Supply

WARNING: This page is about a different variant/trim than selected.
  1. Remove temperature sensor for HV battery supply -1-  .

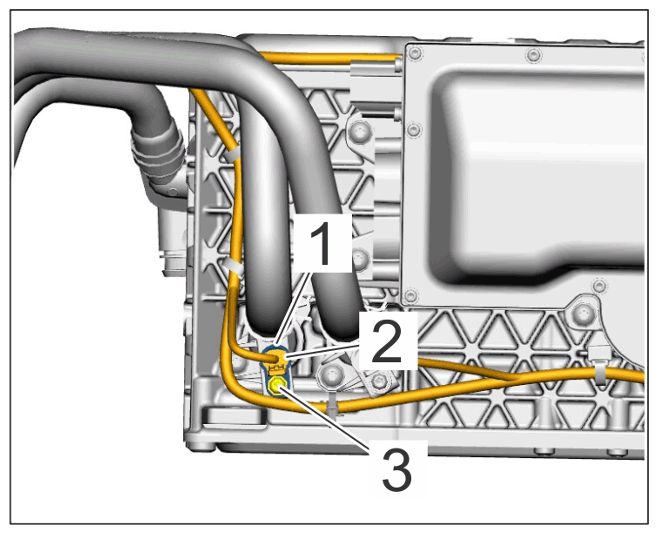

G15210317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Temperature sensor for HV battery supply

  1. 1.1 Release and disconnect cable plug -2-  .
  2. 1.2 Unscrew screw -3-  .
  3. 1.3 Pull off temperature sensor for HV battery supply -1-  .
  4. 1.4 Catch emerging coolant.
