Installing Low-Temperature Circuit Temperature Sensor

1. Install temperature sensor for low-temperature circuit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

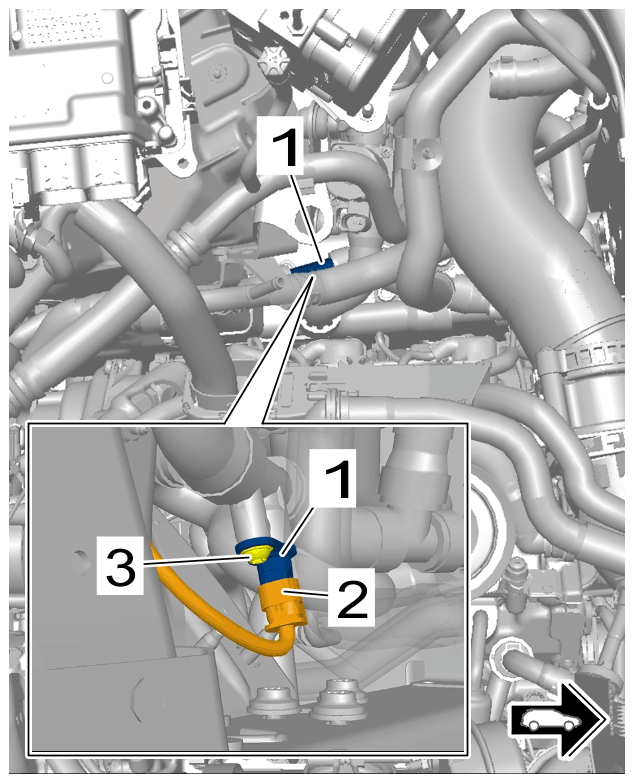

   Low-temperature circuit temperature sensor (TW 6)

   1. 1.1 Insert low-temperature circuit temperature sensor -1-  .
   2. 1.2 Fit and tighten screw -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

   3. 1.3 Push on and lock cable plug -2-  .
2. Install coolant reservoir holder -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

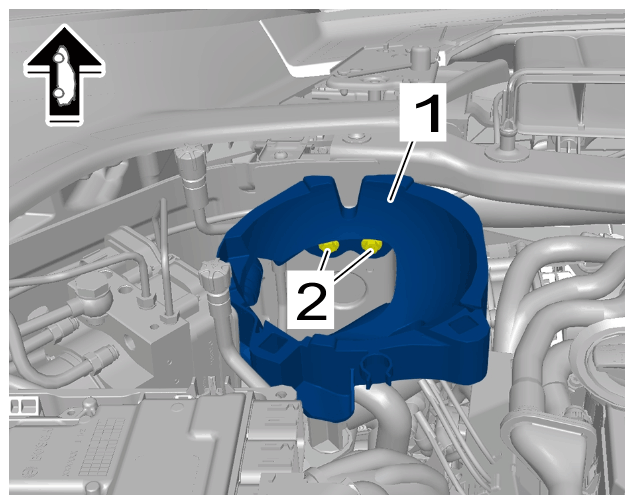

Coolant reservoir holder

1. 2.1 Fit coolant reservoir holder -1-  .
2. 2.2 Fit and tighten screws -2-  .

   > Tightening torque 8 Nm (6 ftlb.)
