Installation Position

WARNING: This page is about a different variant/trim than selected.

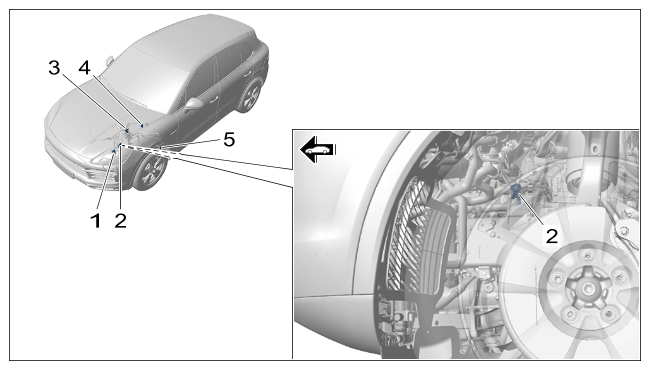

Fig 1: Low-Temperature Circuit Temperature Sensor (TW 6) Components Location
G15210301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Low-temperature system temperature sensor (TW 5)
2  Low-temperature circuit temperature sensor (TW 6)
3  Low-temperature circuit temperature sensor (TW 7)
4  Low-temperature circuit temperature sensor (TW 8)
5  Low-temperature system temperature sensor (TW 10)
