Removing Low-Temperature System Temperature Sensor (Tw 10)

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. → Avoid contact with hot fluid.
    2. → Wear personal protective gear.
  1. Remove low-temperature system temperature sensor -1-  .

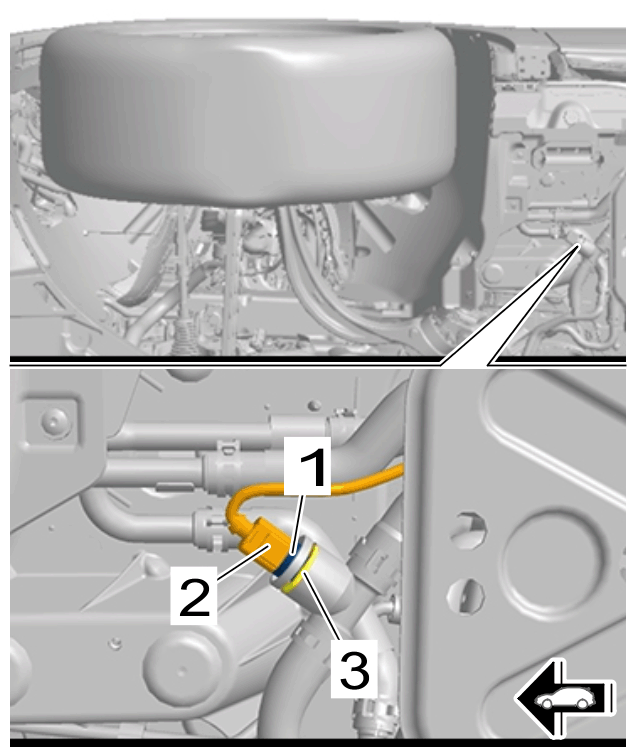

G15210296Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-temperature system temperature sensor (TW 10)

  1. 1.1 Release and disconnect cable plug -2-  .
  2. 1.2 Pull off retaining clip -3-  .
  3. 1.3 Remove low-temperature system temperature sensor -1-  from line connection.
  4. 1.4 Catch escaping coolant and close off line connection using a suitable stopper.
