Installing Low-Temperature System Temperature Sensor (Tw 10)
WARNING: This page is about a different variant/trim than selected.
- Install low-temperature circuit temperature sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

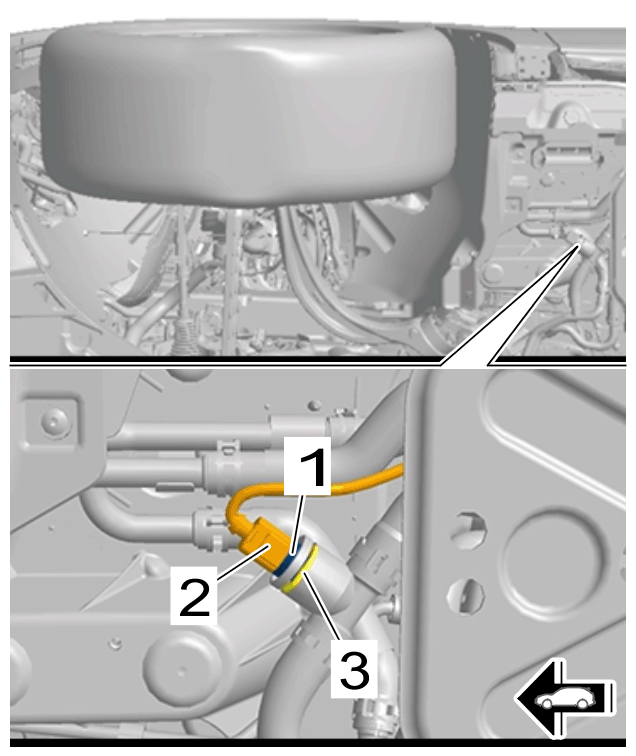

Low-temperature system temperature sensor (TW 10)
- 1.1 Insert low-temperature system temperature sensor -1-
in line connection.
- 1.2 Insert retaining clip -3-
and check that it is fitted correctly.
- 1.3 Connect and lock cable plug -2-
.
